Aftermarket Assassins '24+ Kawasaki Ridge 1000 S1 Clutch Kit with Overdrive & Cruiser Options

Fits all 2024-Up Kawasaki Ridge 1000 models (92HP & 116HP) including Crew models

Part Number: 101-1019

• Our S1 Ridge clutch kit packs a huge punch!  No matter the terrain, they hit hard and just keep pulling for days.  On the farm, trail or at the race you'll notice wicked acceleration and instant clutch response when getting back into the throttle after hammering that corner.  In the dunes you'll see the same benefits, but also have much less bogging when climbing that big dune.  The machine will hold RPM so you can get where you need to go, and get there faster!  Going mudding?  Our mud setup will help turn those tires through the thick and deep with much better RPM and wheel speed that's key to climbing out of that hole. Are you a rock crawler?  Our smooth engagement and precise feel down low will give you the confidence to tackle any obstacle.  We have a huge amount of CVT knowledge, a great passion for the sport, and spent many hours testing different setups in the real world.  We know you'll be extremely pleased with the performance gain from our clutch kits!
• The Ridge has some clutching issues right out of the box because the OEM weighs are soft, just like the KRX models.  Being these vehicles are geared so low, the clutch constantly runs at full shift over 50 MPH.  Being at full shift for so long wears the weights away at the tip and will groove them quickly.  This makes the vehicle want to sit at full shift and shift inconsistently.  Our weights go through two hardening processes and are through hardened for the most longevity possible.  Not only that, but they are fully adjustable for different tires/modifications and perform better because of how the mass is placed on the arm.  AA Ridge weights now come with a bushing design for an even smoother engagement over stock.
• The original Ridge clutch kit!  When Kawi first released the Ridge, we had one on order so we could quickly get to work.  After hundreds of different tests with weight profiles, clutch setups, and spring changes we found the best combination possible.

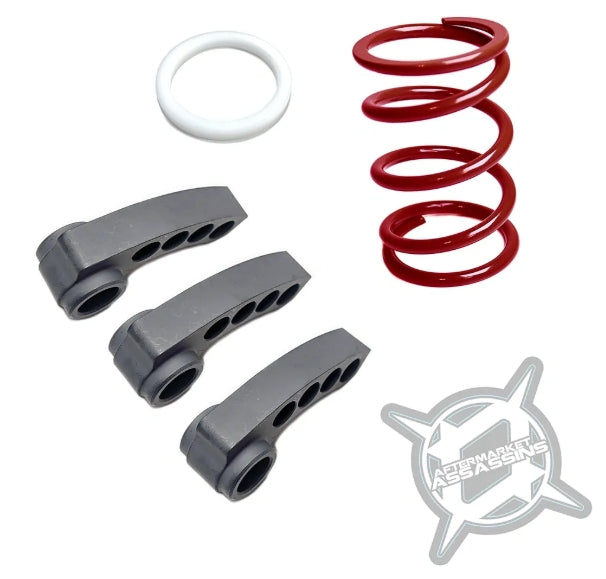

• S1 kits include our AA Recoil magnetic adjustable bushing style clutch weights, AA primary spring & setup guideline.
• Our setup guideline will let you know how to set your weights for stock horsepower, tuned horsepower, 27-35" Tires, paddles & more.
• Fully adjustable magnetic weights are easy to use and adjust
• We have 3 different clutch weight configurations for your riding type, and they can be switched out when/if needed:
  • For reference, stock cruising RPM @ 50mph is normally 7700-8000 RPM
  • Standard clutch setup:  Our main clutch weight setup guide.  This is the best middle ground for belt grip, performance, and driveability.  Cruising RPM @ 50 MPH is typically  6200-6500.  Peak RPM at wide open should be 7600-7800.
  • Cruiser clutch weight setup:  On our clutch weight setup guide, it will list a cruiser option for those wanting to lower overall RPM to make the vehicle quieter. This is aimed at those that don't need every horsepower, but want a smoother/quieter ride.  Cruising RPM @ 50 MPH is typically 5500-5800.   Peak RPM at wide open should be 6300-6700.
  • All our performance setup:  Our clutch weight setup guide, it will list the all out performance setup which has you run the weight arms with no magnets.  This will give you maximum RPM/Performance from your ridge.  This will engage a little higher than the other setups and will run higher RPM all around, but will absolutely rip if that's what you are looking for.  Cruising RPM @ 50 MPH is typically 6500-7000.  Peak RPM at wide open should be 7800-8100.
• By design, our clutch weights have more tip weight mass with a more aggressive profile, so they grip the belt harder and accelerate faster... yet still crawl even better than OEM.
• A must-have when changing tires, tuning your machine, or running paddles
• Cooler running belt temps from a more efficient power transfer which results in longer belt and clutch life
• Big acceleration gains and better power transfer to the rear wheels.
• Close to stock engagement which is very smooth
• Our Recoil clutch weights are easily adjustable with simple magnets.  They have a custom AA profile, the BEST coating on the market (nitrocarburizing) which has increased wear resistance, improved fatigue strength, and added surface lubricity. These clutch weights also offer great performance, and the ability to tune for many different applications or modification in the future, without the need to buy extra parts.  The magnetic weights are the best option to properly place the mass where we need it on the weight for best performance for your application.
• We found the stock secondary clutch to work very well on standard cab models with stock tires, this kit is just for the primary clutch.  For heavier machines (crew cab models) and those running larger/heavier tires we highly recommend our S2 clutch kit which includes our stiffer secondary spring.
• Make sure you check peak RPM @ 30-50 MPH, it should be 7400-7700 RPM for peak performance with factory ECU tuning or 7600-8000 RPM for peak performance with AA ECU tuning.  See here on how to test:  https://aftermarketassassins.com/tech-blog/f/clutch-testingverification#

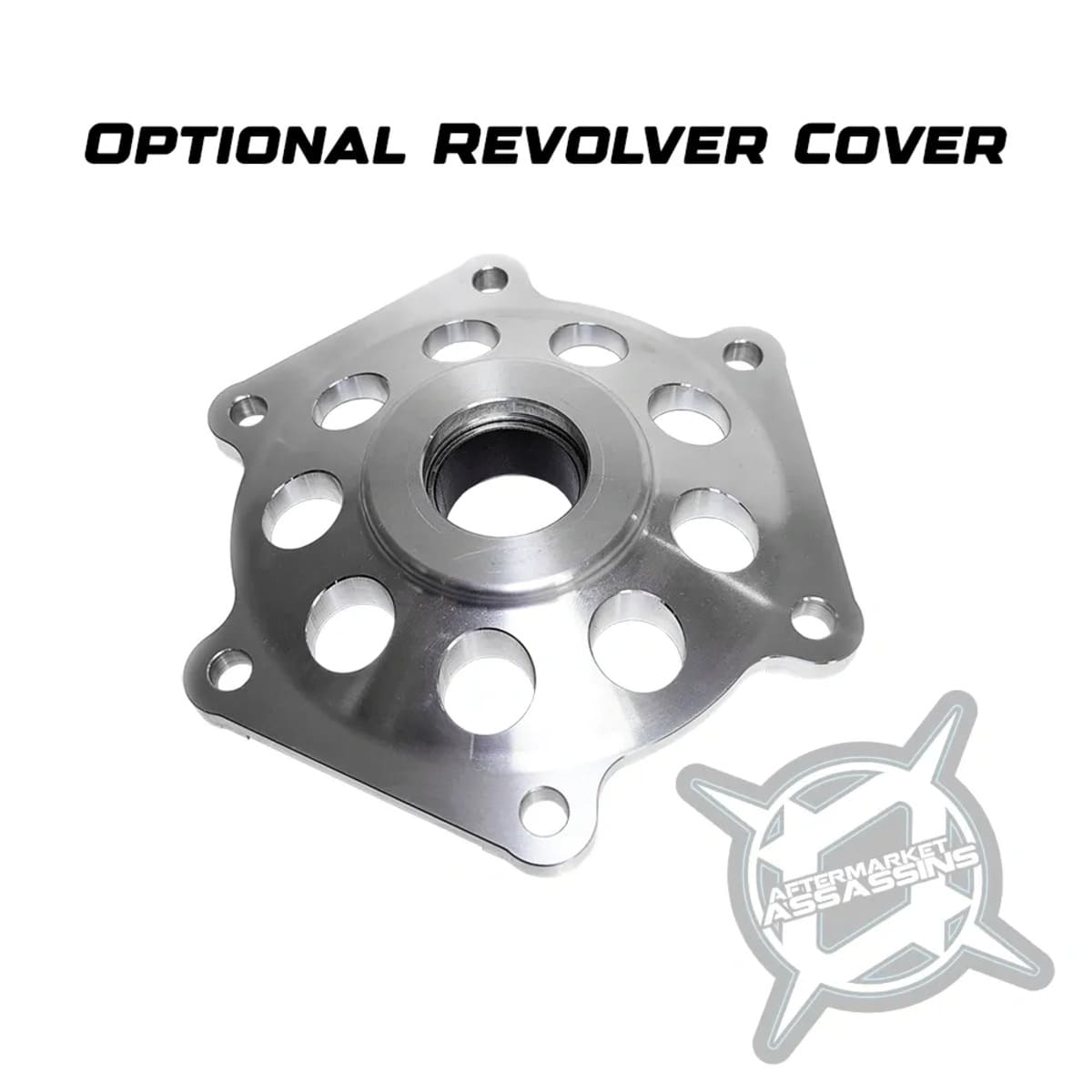

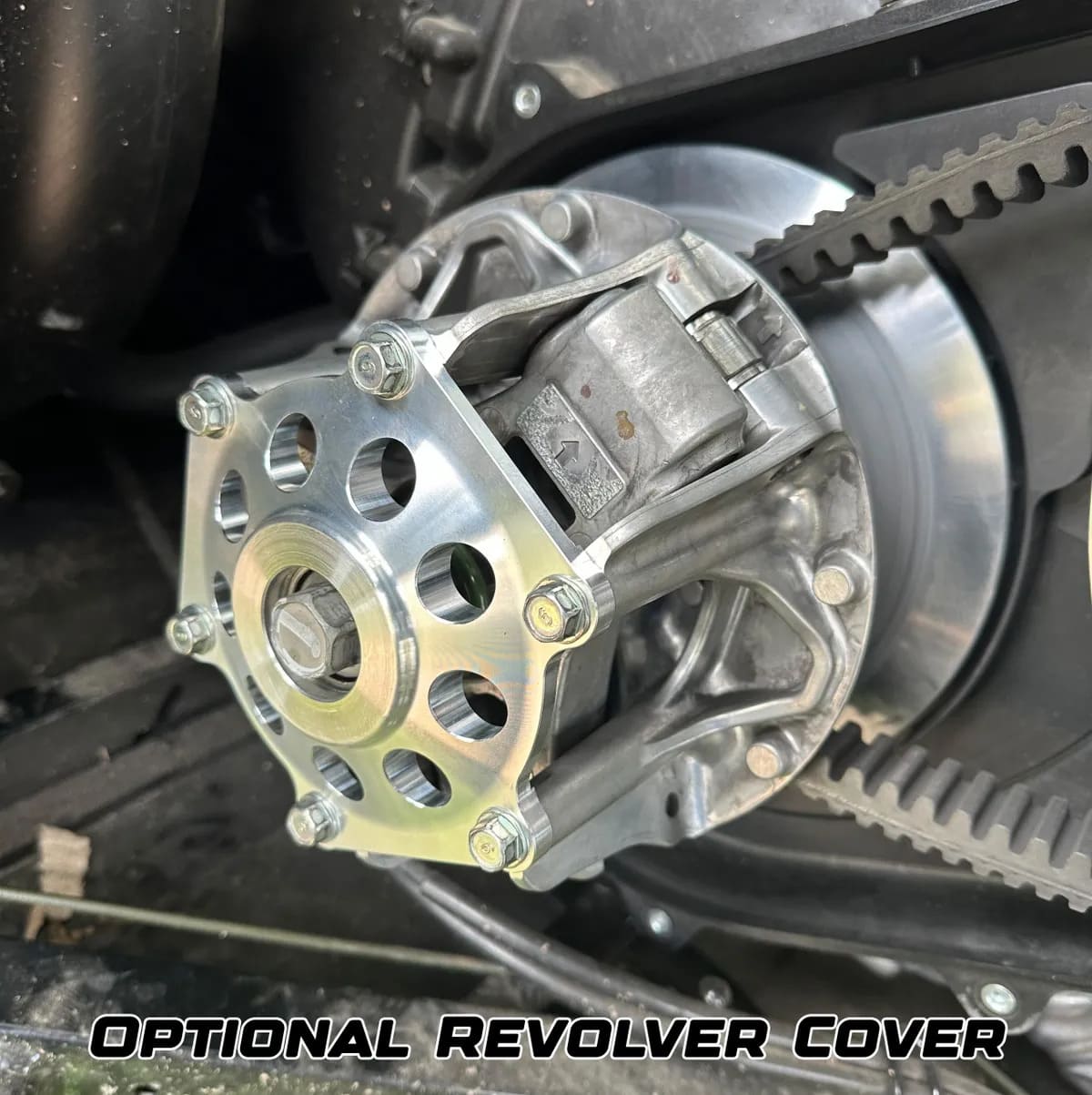

• Overdrive Option:  These clutches do not shift fully and therefor your RPM runs high quickly at higher speeds.  Shifting further into overdrive helps give you more top speed, and higher speeds without so much RPM.  To do this, we had to design a custom weight profile with slightly added length.  We have two methods for this.  The best option is our billet  overdrive Revolver cover which allows the clutch to shift further and properly limit and this is much stronger than the cast OEM plate.   The second method is to use our overdrive washers to space your OEM cover out which works, but is a little more hassle to install and more parts to worry about... plus, the OEM cover is weak, so it's best to replace it if you can.
• With the overdrive option we see around 76-79 MPH with our cruiser setup, and you can see 80-85 MPH with our standard or performance clutch weight setups
• You will need belt removal bolts (M10-1.25 x 50mm) which we have as an optional item
• Highly recommend upgrading to the billet overdrive Revolver Clutch Cover with Tower Lock for increased strength an further clutch shift out
• Highly recommend upgrading to our Stryker belt as the factory belt is known for stretching quickly; leading to belt slip off engagement/crawling speeds and more frequent belt deflection adjustments.
• See this VIDEO with exhaust sound clip, cruising RPM clip, and a basic overview of our Ridge products
• See our clutch kit installation video HERE
