Aftermarket Assassins Can-Am Maverick X3 High Flow OEM Turbo Replacement

Aftermarket Assassins Can-Am Maverick X3 High Flow OEM Turbo Replacement

This turbocharger is a larger turbocharger that is set up to work with OEM tuning, or tuning designed for your OEM turbocharger. This means it's a direct bolt on with the exception of needing a larger intake coupler/adapter. The turbo will give you a roughly 10% more power vs. your OEM turbo at the same boost pressure due to the high flow and larger design.

With the larger turbo, compressor speed goes down to create the same PSI of boost pressure. This means you see lower intake temps and better power. This is a huge deal for everyone, but especially those at altitude.

Features:

• Upgradable: At a later time, you can always upgrade your TMAP sensors, Injectors & other parts to make a high HP vehicle with the same turbocharger.
• Intake adapter required: This depends on what intake you already have, and/or year as the 2020 airboxes have the high flow neck (see kit options).
• Compressor Wheel: Inducer is 44.30mm and the Exducer 59.00mm
• Exhaust Turbine Wheel: 11 blade with an Inducer size of 43.25mm and Exducer size of 37.7mm
• 30% Larger Turbine A/R Ratio for better exhaust flow and less back pressure but still with excellent and quick spool
• High quality turbo made in north America and finish assembled here at our facility in Wisconsin.

Kit Includes:

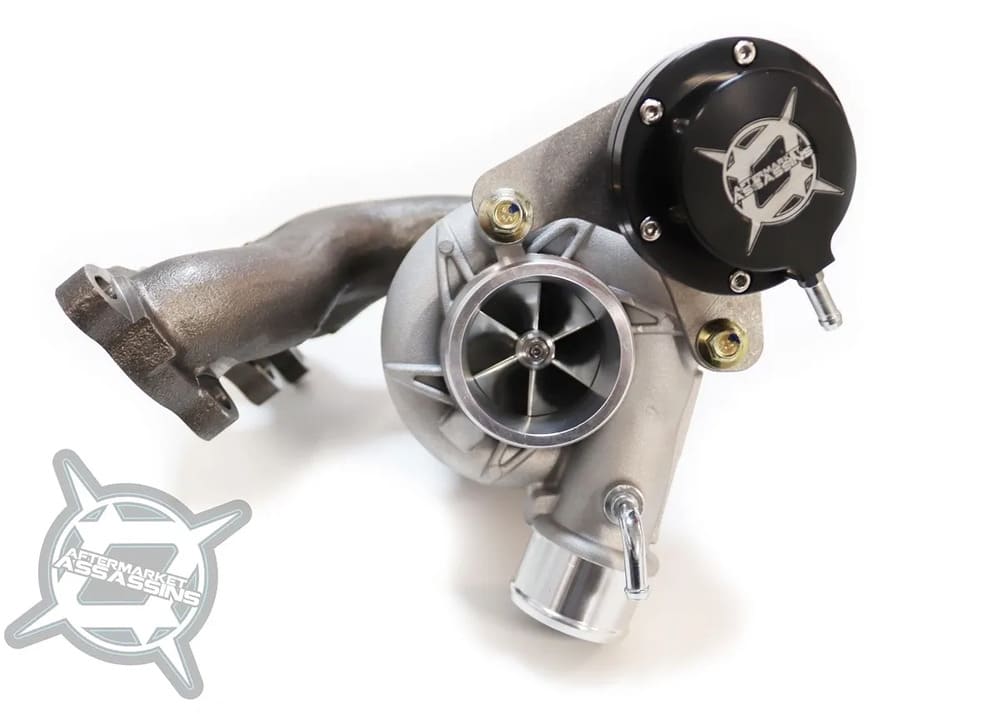

• X3 Big Turbocharger
• AA billet wastegate kit set at 5-7psi
• and Silicone Intake Adapter

Fitment:

• Compatible with all 2017-2021 120hp
• Compatible with all 2023+ 135hp
• Compatible with all 2017 154hp, 2018-2021 172hp
• Compatible with all 2020+ 195hp RR models & 200 HP RR Models
