DESCRIPTION

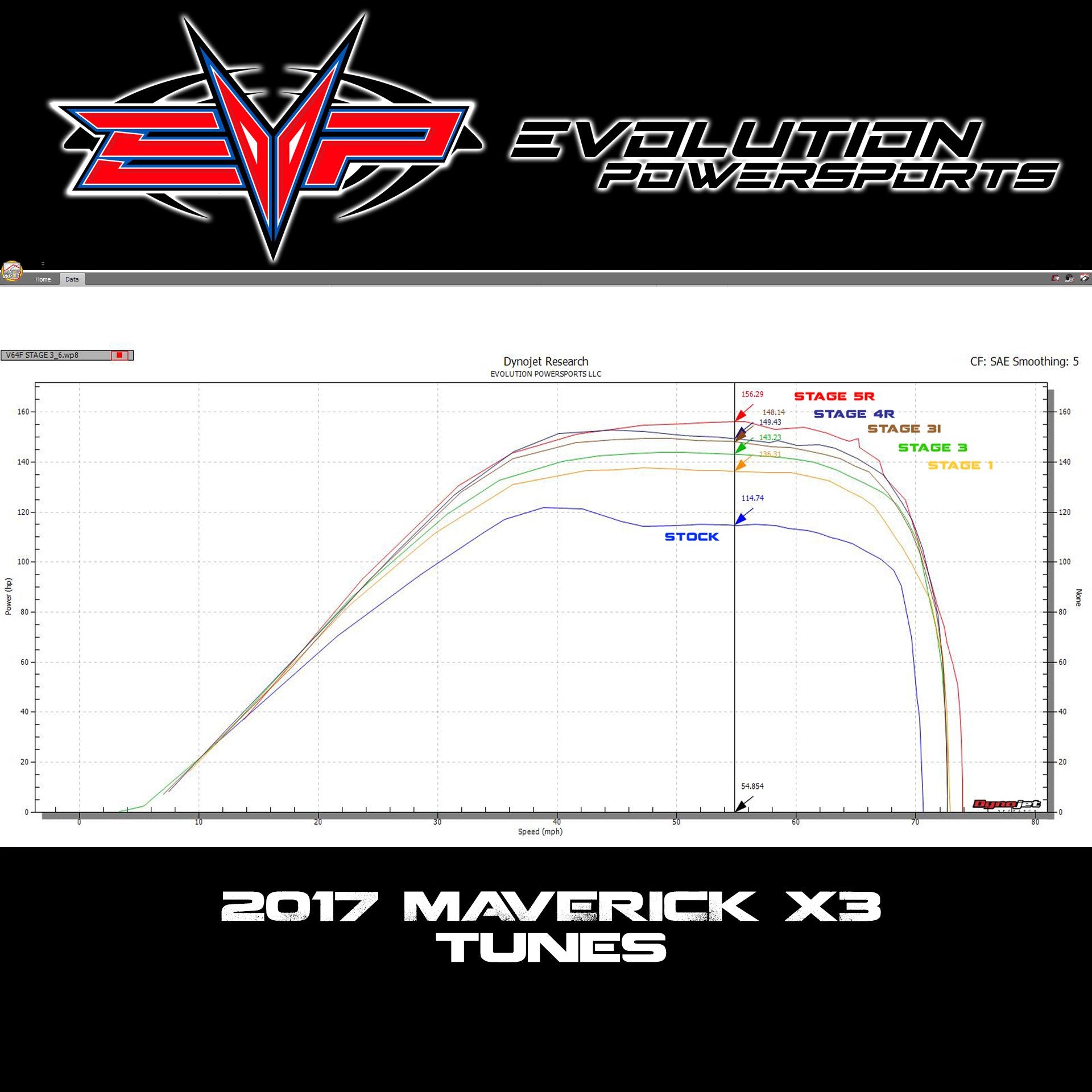

STOCK FUEL PUMP + STOCK INJECTOR ECU TUNING

• Stock — CHP 154, WHP 126, Boost 11, Wastegate 5, Fuel 91, Exhaust N/A
• Stage 1 — CHP 170, WHP 139, Boost 14, Wastegate 5, Fuel 91, Exhaust Stock or Aftermarket
• Stage 2 — CHP 177, WHP 145, Boost 15, Wastegate 5, Fuel 91, Exhaust Stock or Aftermarket
• Stage 3 — CHP 180, WHP 148, Boost 15.5, Wastegate 5, Fuel 91, Exhaust Stock or Aftermarket

INCLUDES: EVP ECU Bench Flash Only (choose one tuning stage)

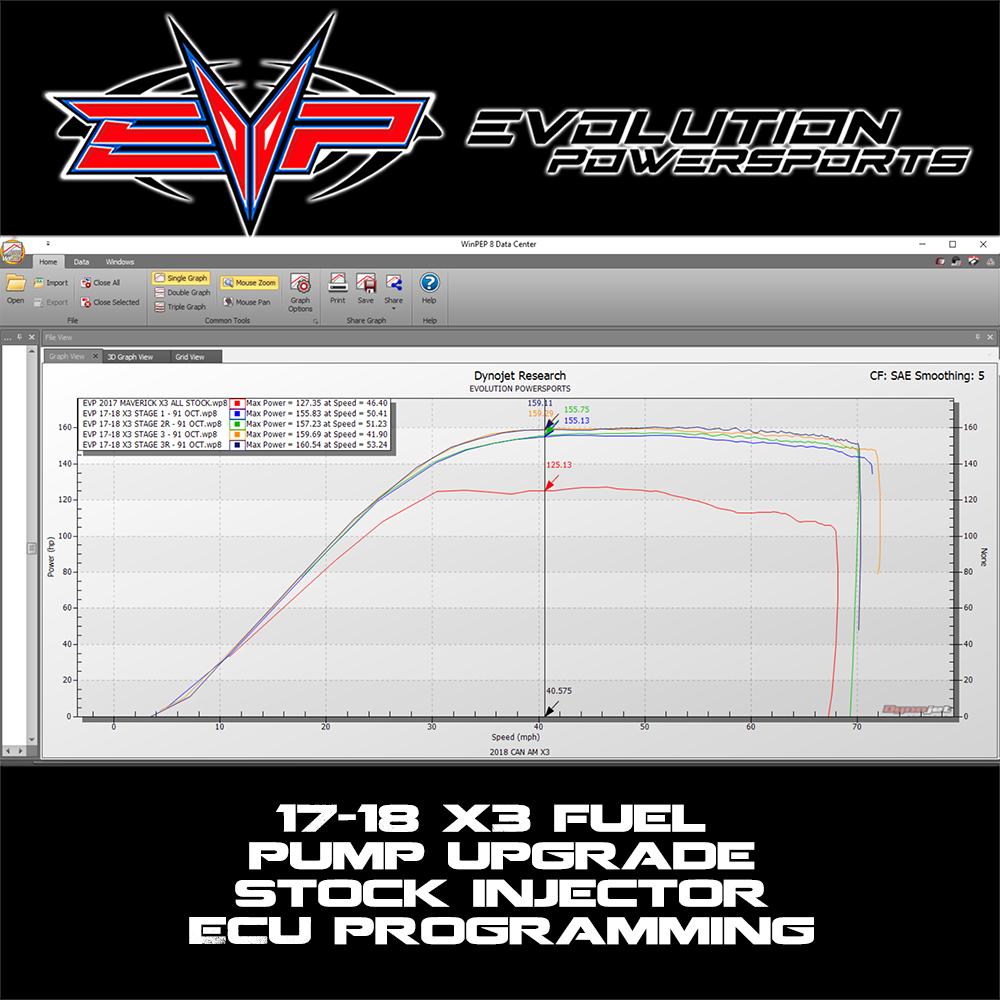

UPGRADED FUEL PUMP + STOCK INJECTOR ECU TUNING

• Stock — CHP 172, WHP 141, Boost 14, Wastegate 7, Fuel 91, Exhaust N/A
• Stage 1 — CHP 192, WHP 157, Boost 16, Wastegate 7, Fuel 91, Exhaust Stock or Aftermarket
• Stage 2R — CHP 196, WHP 161, Boost 17, Wastegate 8, Fuel 91, Exhaust Stock or Aftermarket
• Stage 3R — CHP 200, WHP 164, Boost 17.5, Wastegate 8, Fuel 91, Exhaust Stock or Aftermarket
• Stage 3R-93 — CHP 205, WHP 168, Boost 18, Wastegate 8, Fuel 93, Exhaust Stock or Aftermarket

POWER PACK INCLUDES: Stock Injector ECU Power Flash (choose one tuning stage), and upgraded 2018 X3 Turbo R Fuel Pump

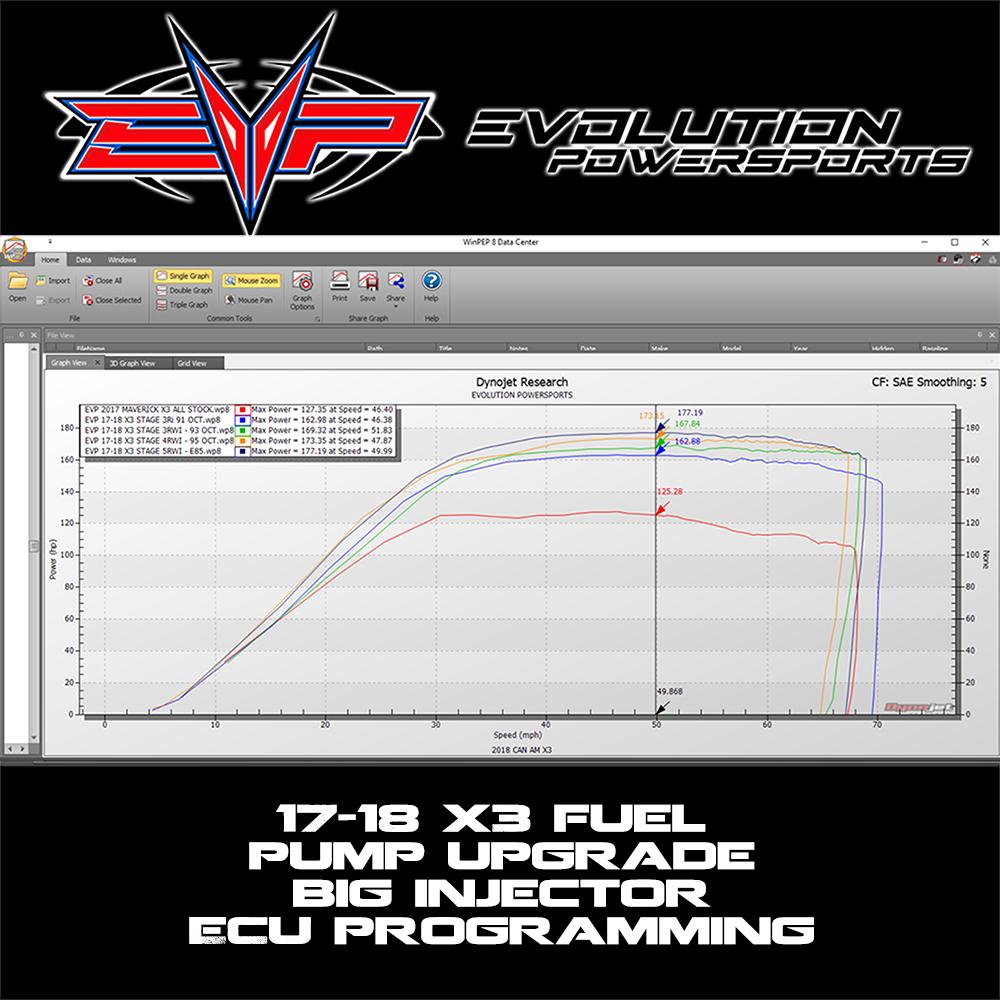

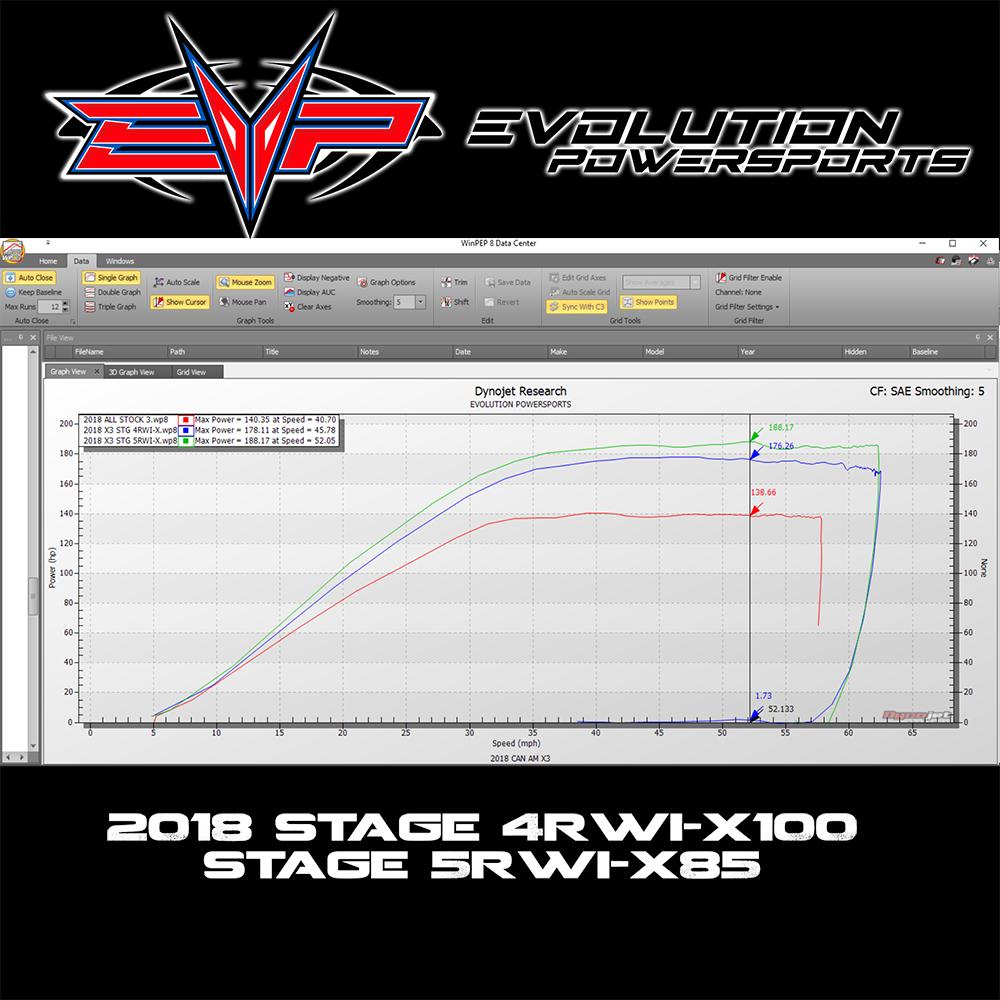

UPGRADED FUEL PUMP + BIG INJECTOR ECU TUNING

• Stage 3RWi — CHP 205, WHP 168, Boost 18, Wastegate 8, Fuel 93, Exhaust Stock or Aftermarket
• Stage 4RWi — CHP 215, WHP 176, Boost 20, Wastegate 9, Fuel 95, Exhaust Stock or Aftermarket
• Stage 4x100 — CHP 225, WHP 184, Boost 22, Wastegate 11, Fuel 100, Exhaust Stock or Aftermarket
• Stage 5x85 — CHP 235, WHP 193, Boost 22, Wastegate 11, Fuel E-85, Exhaust Stock or Aftermarket

POWER PACK INCLUDES: Big Injector ECU Power Flash (choose one tuning stage), Big Injectors (set of 3), Wastegate Actuator, and upgraded 2018 X3 Turbo R Fuel Pump

Tune Features:

• Revised intercooler fan settings
• Left-foot braking enabled
• Improved boost response and low-to-mid range performance
• Speed limits raised; torque limits removed in low & high gear
• Low & high gear rev limit raised from 8300 to 9000 RPMS
• V-Max raised
• Linear throttle mapping (improved e-gas)
• Fans set to activate at 165 degrees
• Race Start — no brake press required to start
• Fueling corrected for each stage so no fuel controllers are needed

Development and validation were done on a large dyno program and in-field testing, then refined with EVP Racing and supported racers.

ECU Power Flash Kits can include the OEM 2018 fuel pump to unlock higher gains on 2017 models.

FITMENT

2017 Can-Am Maverick X3 154 HP models

Development

We Work Hard So You Can Play Hard!

Development included 2000+ dyno runs and extensive field testing: trails, desert, dunes, high altitude and extreme heat. Tunes were further refined on track with EVP Racing.

Manufactured by Evolution Powersports. Official specs and resources: EvoPowersports.com.
