DESCRIPTION

PLEASE NOTE: An EVP CodeShooter Flashing Device is required for all Paragon Turbo Systems.

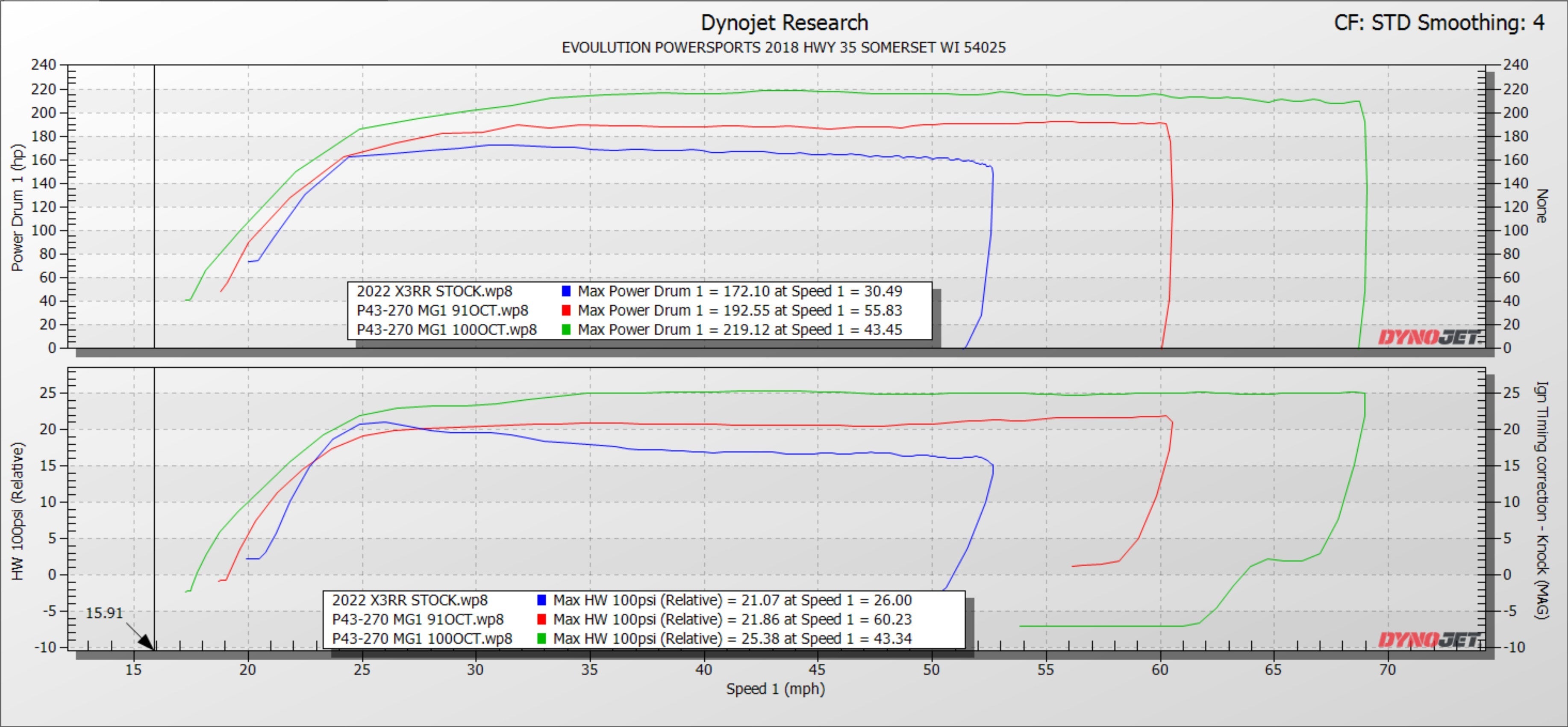

DYNO NOTE: Due to the MG1 ECU torque strategy, the boost figures listed represent maximum boost on a hot engine. When intake temps are cooler, boost will be lower but will produce the same power; the ECU adjusts boost with intake temperature to maintain power.

Core details:

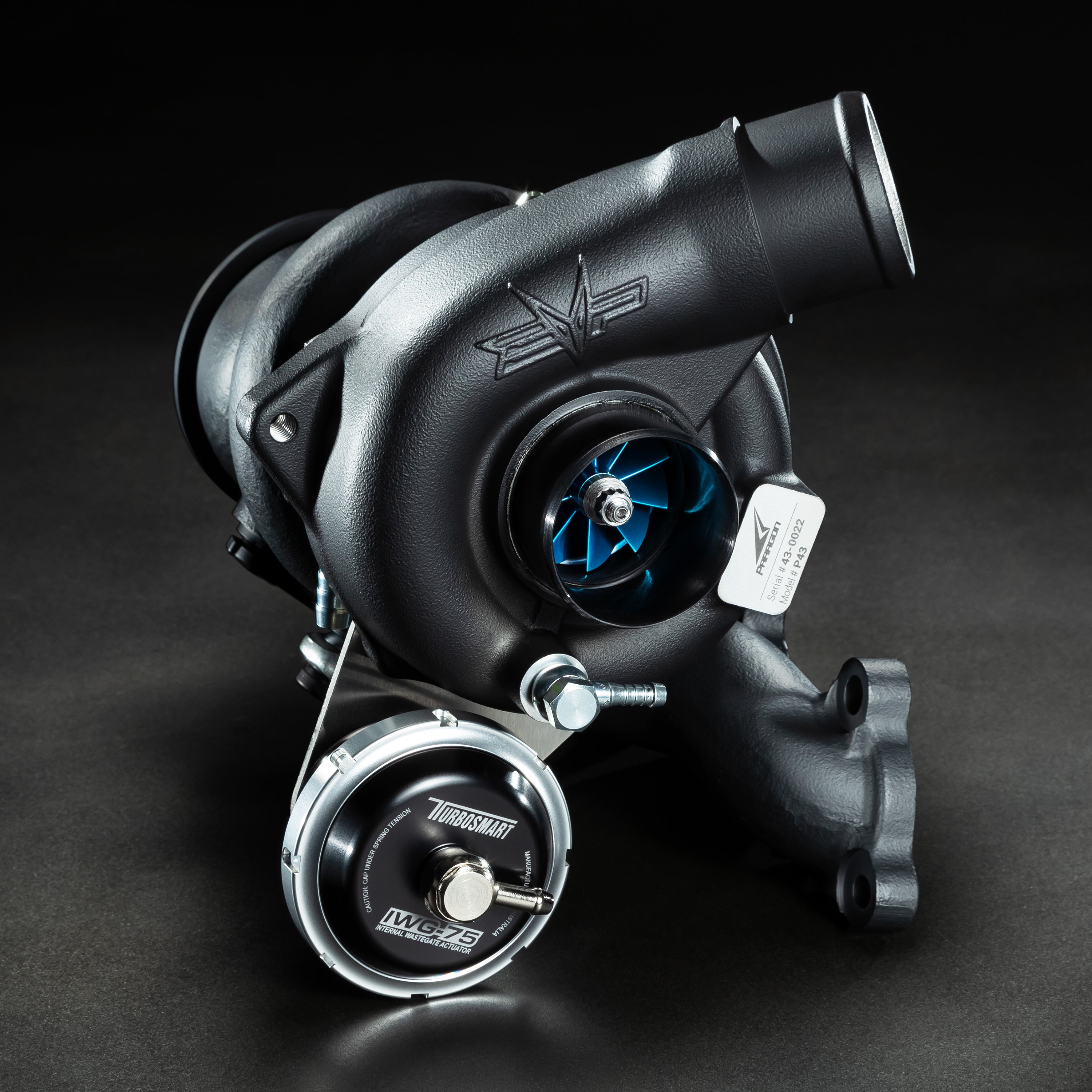

• 43mm compressor, 42mm turbine for fast spool and high top-end power
• Inconel turbine wheel and wastegate flapper
• Powder-coated compressor cover with billet insert and anodized compressor wheels
• Ceramic ball bearing CHRA for quick spool and durability

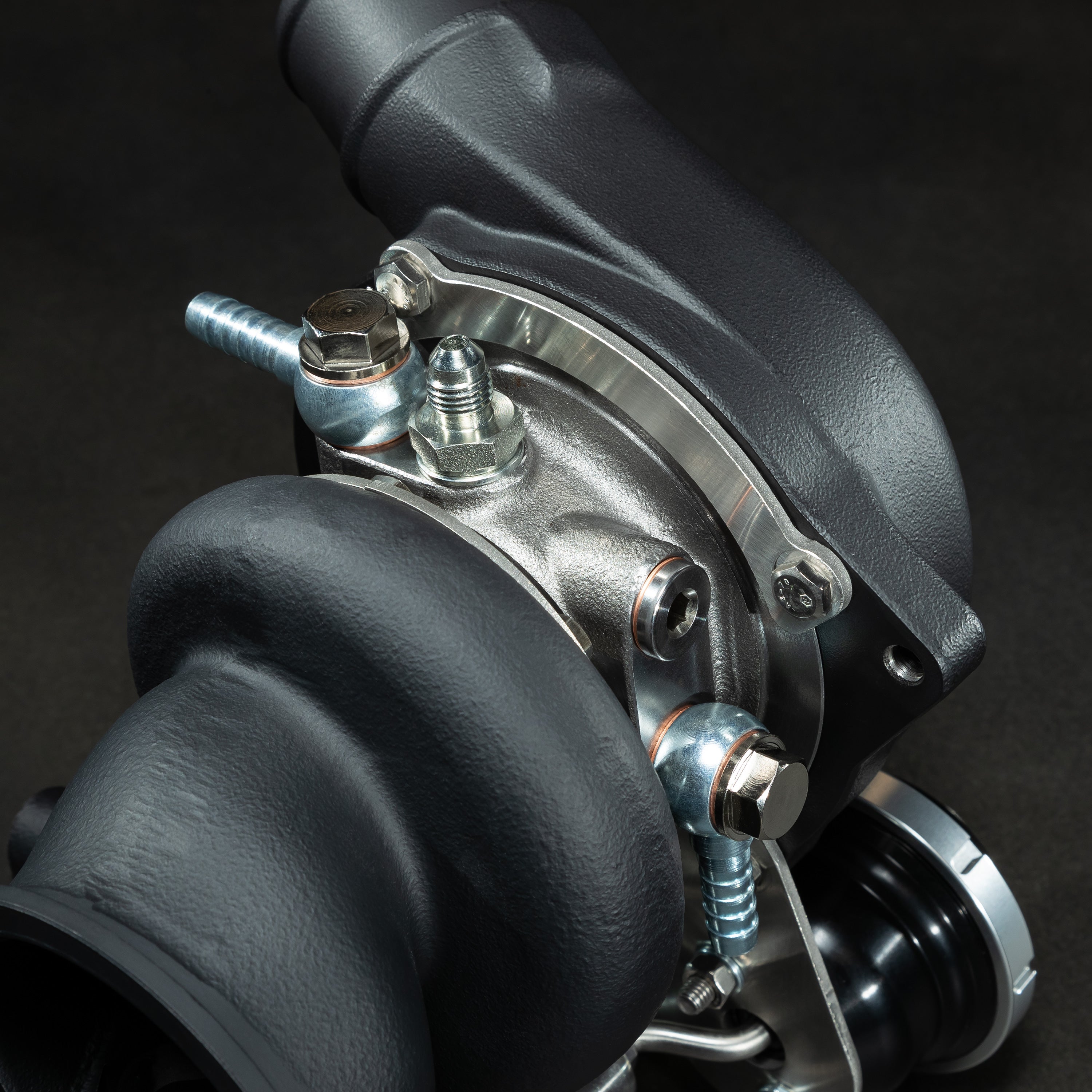

• Ceramic-coated exhaust housings to retain exhaust energy and limit radiant heat

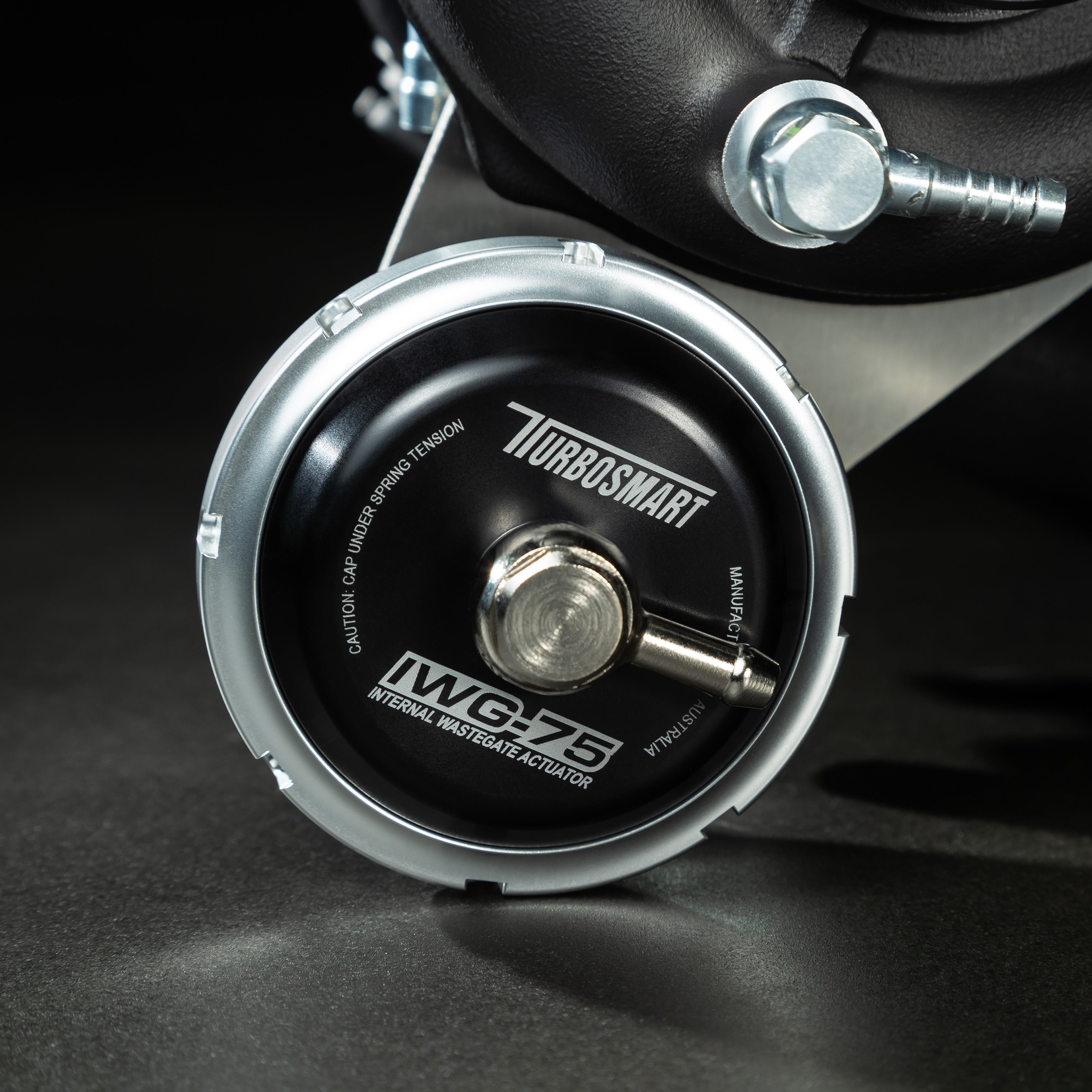

• Turbosmart wastegate actuator with adjustable turnbuckle
• Serialized turbochargers with an industry exclusive 6-month limited warranty

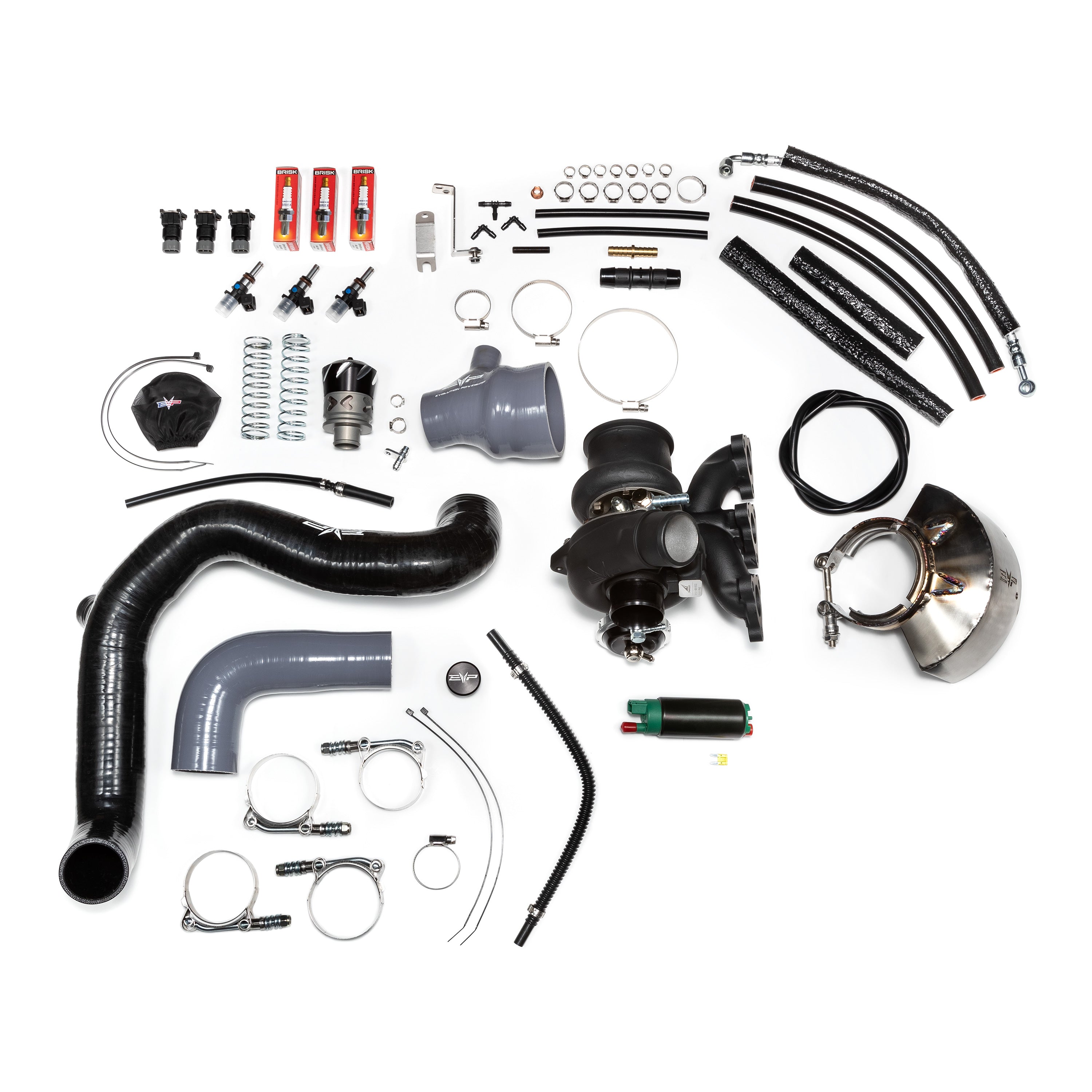

EVP PARAGON P43-270 TURBO SYSTEM INCLUDES:

• EVP Blow Off Valve 2.0 (BOV) Kit for X3
• EVP Paragon 43 Charge Tube Kit for 2020-'X3
• EVP Paragon 43 V-Flow Intake Kit for 2020-'X3
• EVP 1000cc Injectors (Set Of 3)
• EVP 1000cc Fuel Injector Adapter Kit for 2020+ Turbo RR (Set of 3)
• EVP Paragon 43/42 Blue Turbocharger Assembly for X3 MG1 ECU
• EVP 340LPH Fuel Pump Kit for X3
• Brisk X3 Replacement Spark Plugs
• Full P43-270 install kit with required hardware

If you already own an EVP part from this turbo kit, contact EVP to custom build your order: (715) 247-3862 or givemepower@evopowersports.com.

EVP DISCLAIMER: CLUTCHING YOUR VEHICLE IS MANDATORY WITH ALL EVP TURBO SYSTEMS. IT IS UP TO THE CUSTOMER TO ENSURE THE VEHICLE IS EQUIPPED WITH THE PROPER CLUTCHING REQUIREMENTS. TO SHOP CLUTCHING FOR YOUR VEHICLE, PLEASE CLICK HERE.

FITMENT

2021-23 Can-Am Maverick X3 Turbo RR

INSTRUCTIONS

P43-270 Turbo System for 2021-23 X3 Turbo RR MG1 ECU

Manufactured by Evolution Powersports. Official specs and resources: EvoPowersports.com.
