DESCRIPTION

EVP Paragon P43R is a direct-replacement turbocharger for BRP MG1 X3 platforms. It uses advanced compressor and turbine aerodynamics, a ported compressor inlet, and a ceramic ball-bearing CHRA.

P43R-325 (summary)

• Reuses the same injectors and fuel pump from EVP 2021-'23 big injector packages; only head studs, plenum clamp, race intercooler and proper clutching are required to complete the build.
• Produces 325 crank horsepower on E85 (about 125 more than stock). Quick-spool design with significant overhead (up to 420+ crank with an engine build and supporting components).

P43R-355 (summary)

• Same components as the 325 kit but uses the EVP Full Drop-In Fuel Pump Assembly with 340lph pump and 4.5 Bar regulator and the EVP Torrent-F intake plenum.
• Produces around 350 crank horsepower on E85 (about 150 more than stock). Good incremental upgrade from the 325 kit.

To custom-build an order or upgrade from P43R-325 to P43R-355, contact EVP: (715) 247-3862 or givemepower@evopowersports.com.

P43R FEATURES:

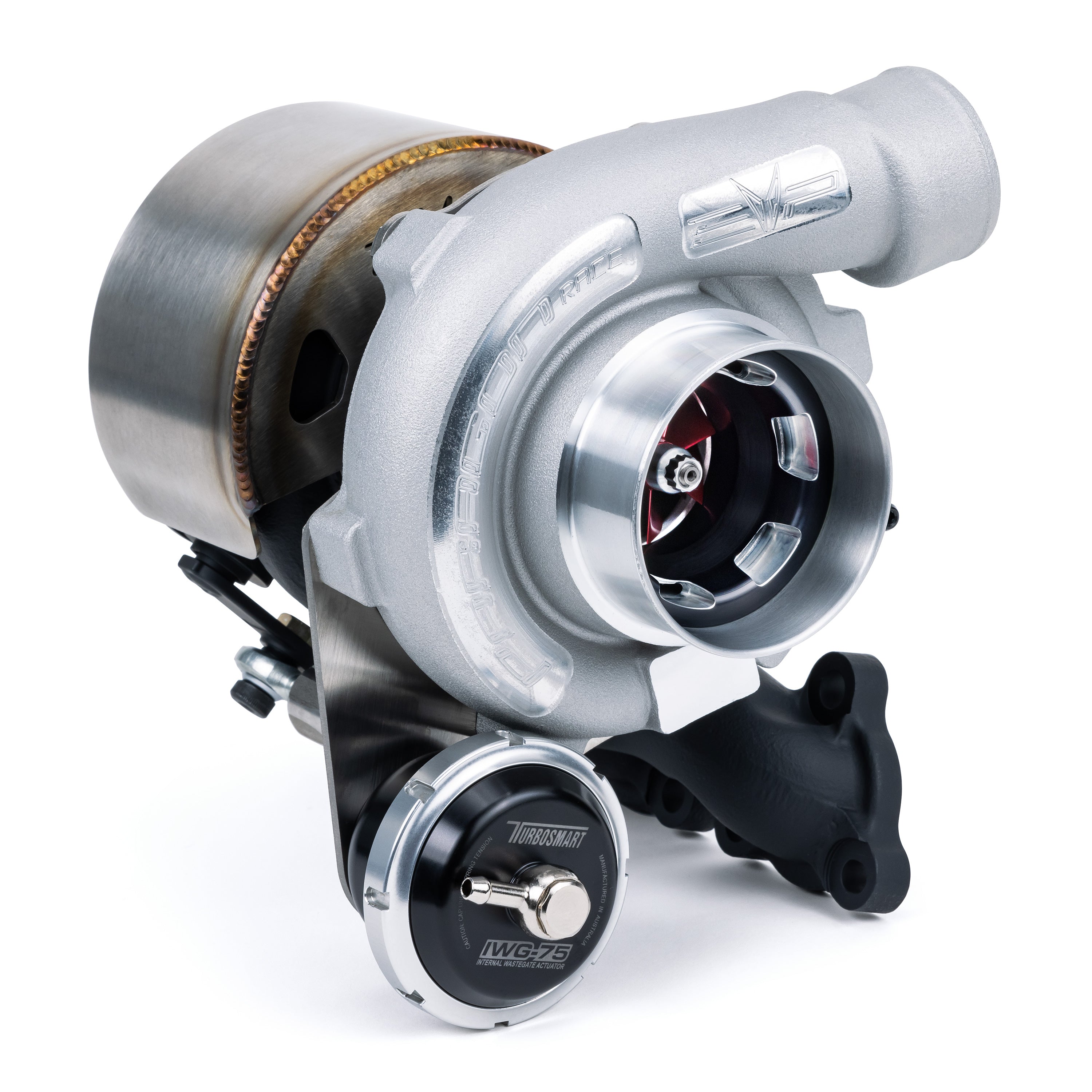

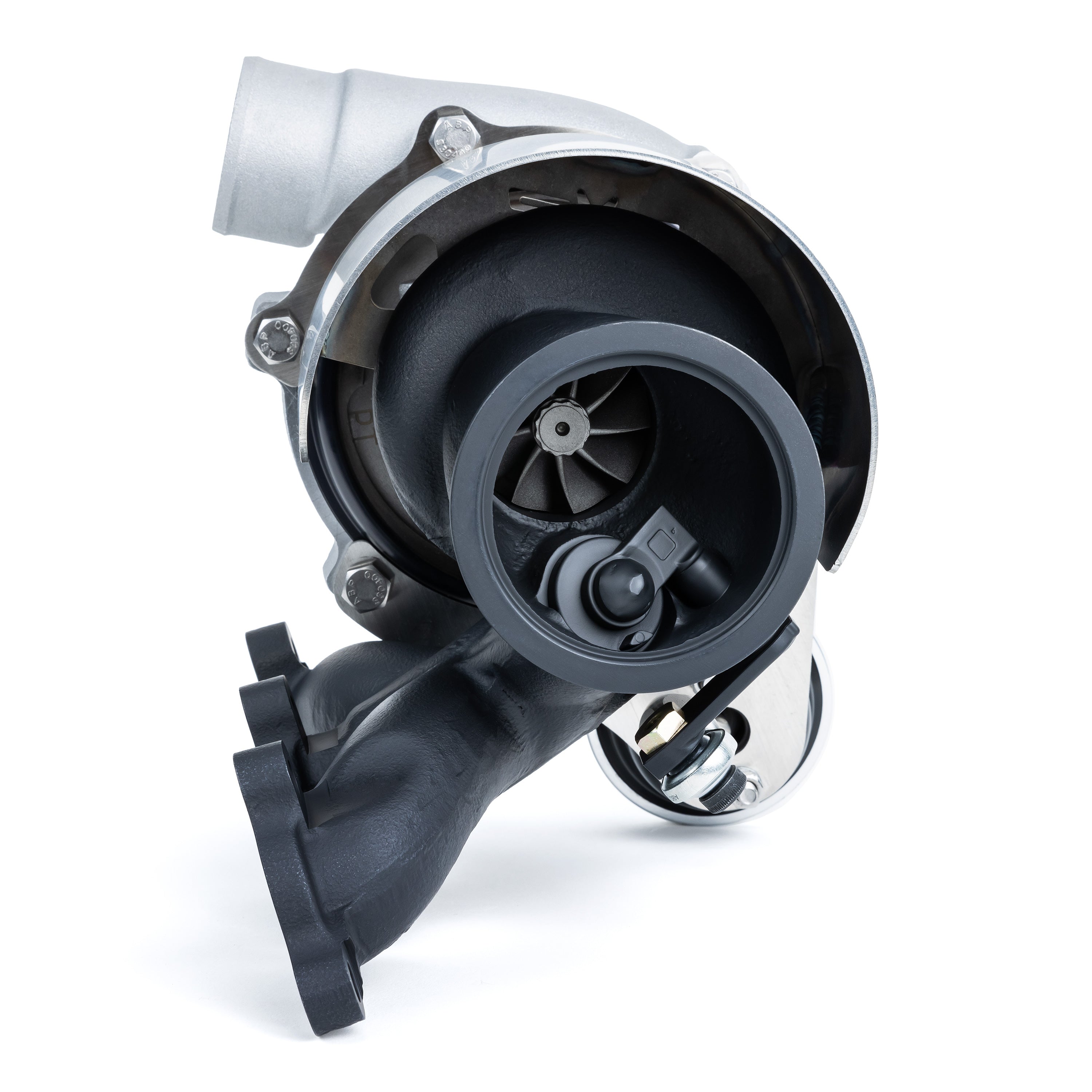

• 43mm compressor with 66mm turbine.
• Includes a fuel pump kit (varies by package).
• Compatible with EVP MG1 adjustable launch control and dash boost/AFR readings.

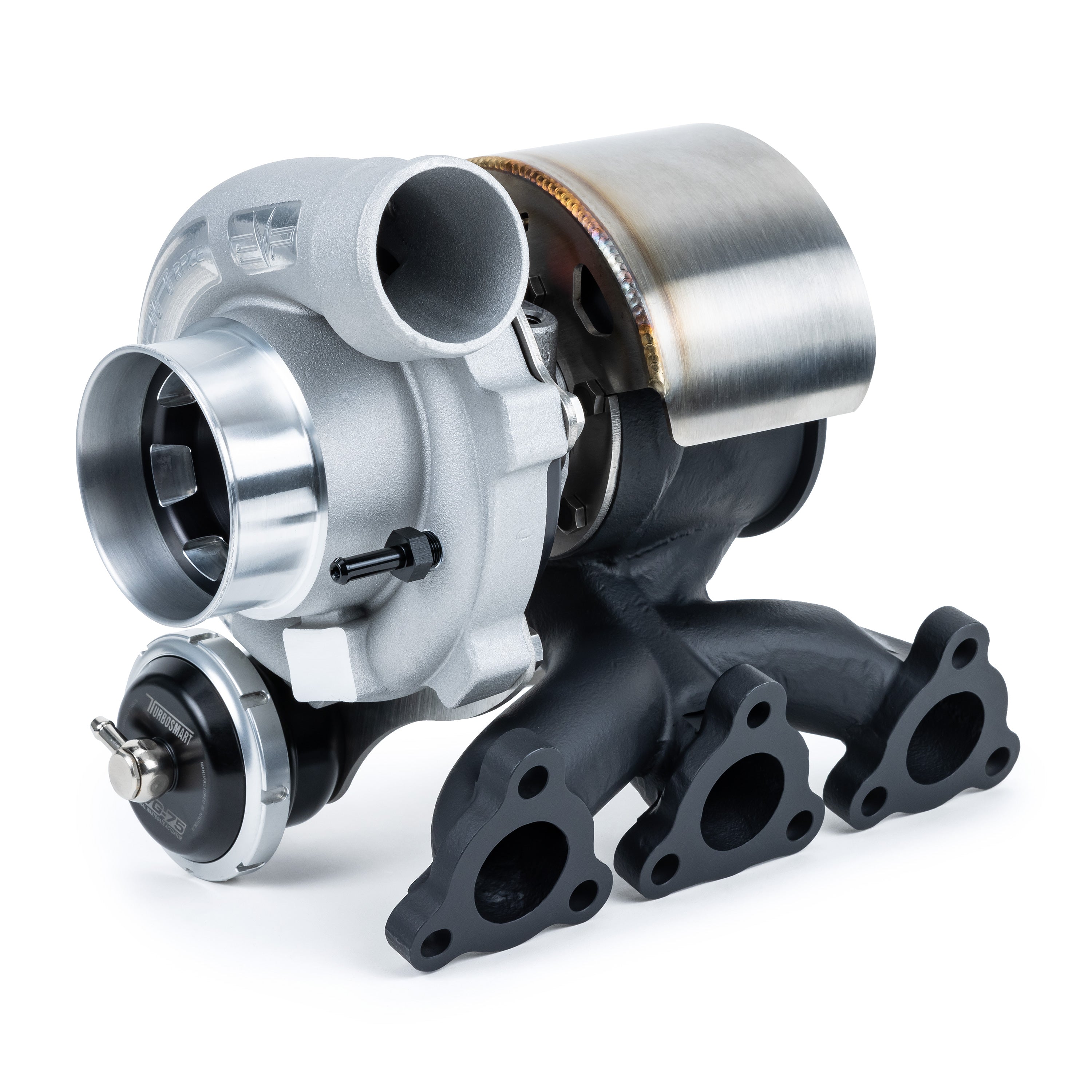

• OEM-style exhaust manifold bolts to the engine; no header or custom exhaust required.

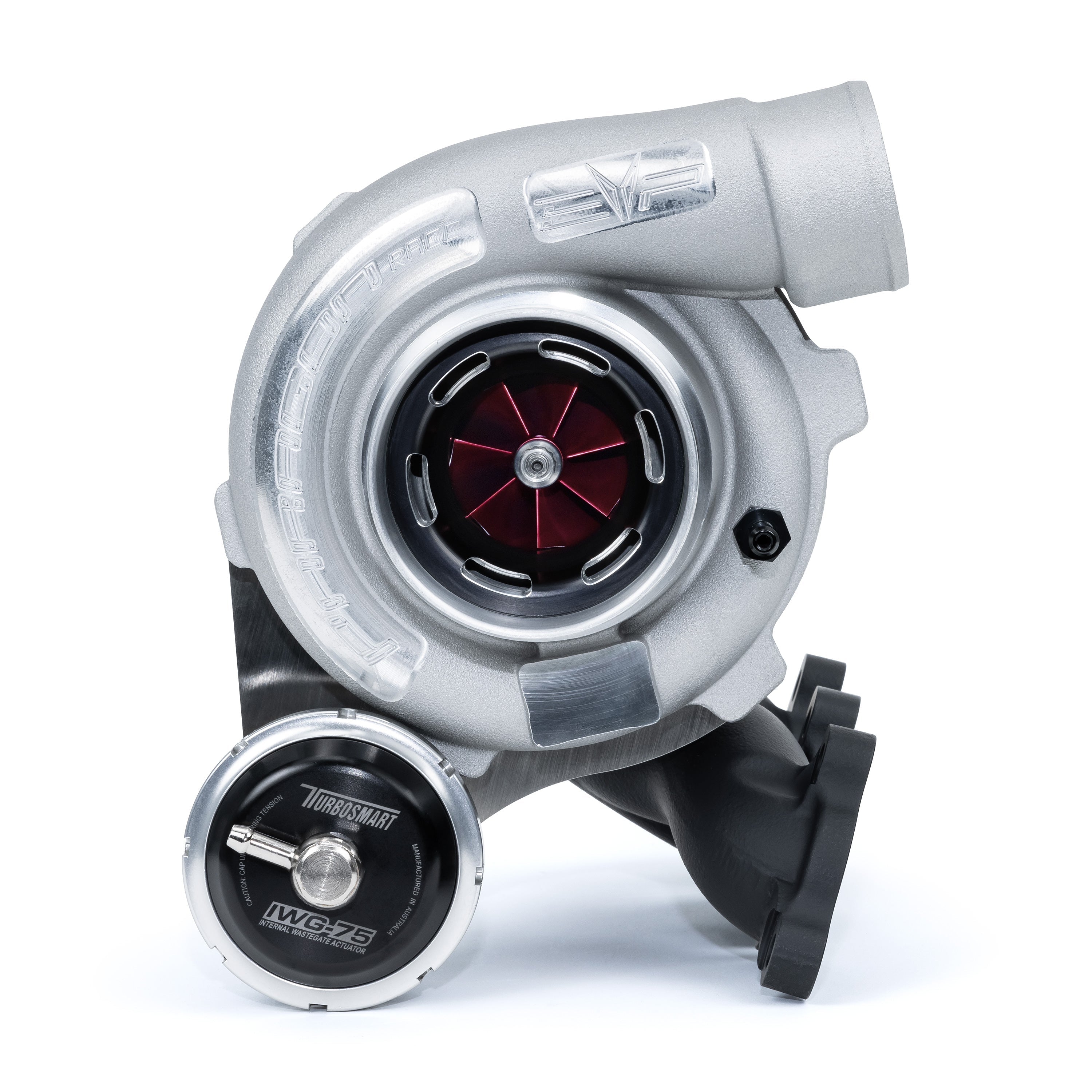

• EVP Race turbo compressor cover with billet insert and anodized compressor wheels.
• Ceramic ball-bearing CHRA for fast spool and durability.
• Ceramic-coated turbine housings to retain exhaust energy and reduce heat output.
• Turbosmart wastegate actuator with adjustable turnbuckle.

EVP DISCLAIMER: Clutching is mandatory with all EVP turbo systems. The customer must ensure the vehicle has proper clutching. To shop clutching: https://evopowersports.com/collections/sxs.

Optional Launch Control: EVP offers a Paragon MG1 ECU adjustable launch control upgrade for improved off-the-line acceleration.

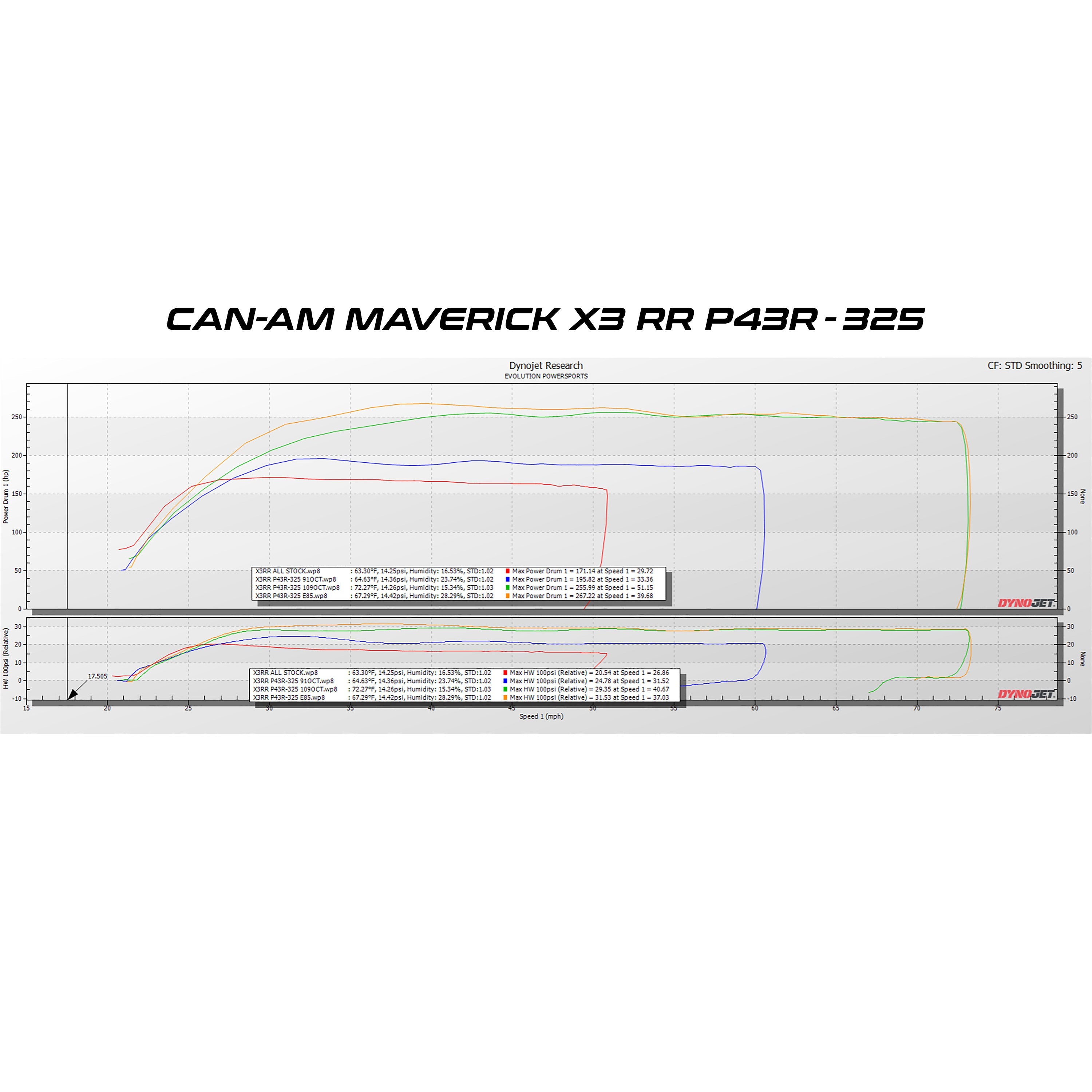

DYNO NOTE: MG1 ECU torque strategy means listed boost figures represent maximum boost on a hot engine; intake temperature affects boost while the ECU targets consistent power.

FITMENT

2021-'23 Can-Am Maverick X3 Turbo RR

KIT INCLUDES

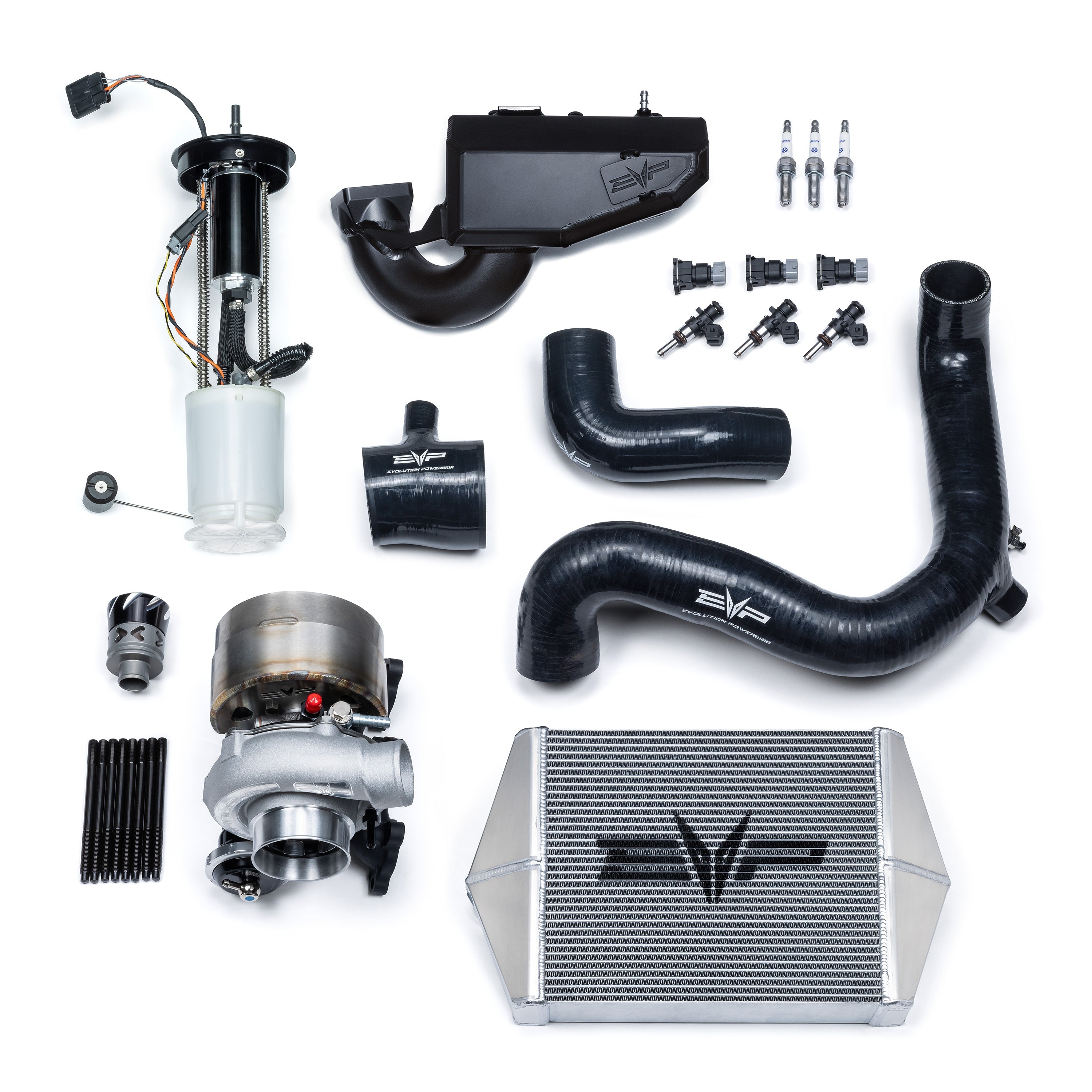

EVP PARAGON P43R-325 TURBO SYSTEM INCLUDES:

• EVP Paragon 43R Red Turbocharger Assembly for X3 MG1 ECU
• EVP Blow Off Valve 2.0 (BOV) Kit for X3
• EVP Paragon 43R Charge Tube Kit for 2020+ X3
• EVP Paragon High-Flow Intake Kit
• EVP Race Intercooler
• EVP Plenum Reinforcement Brace
• EVP X3 Turbo RR 265lph Fuel Pump Kit
• EVP X3 Paragon Turbocharger Install Kit
• X3 Head Stud Kit, 9MM
• Replacement Spark Plugs
• EVP 1000cc Injectors (Set of 3)
• Fuel Injector Adapter Kit (Set of 3)

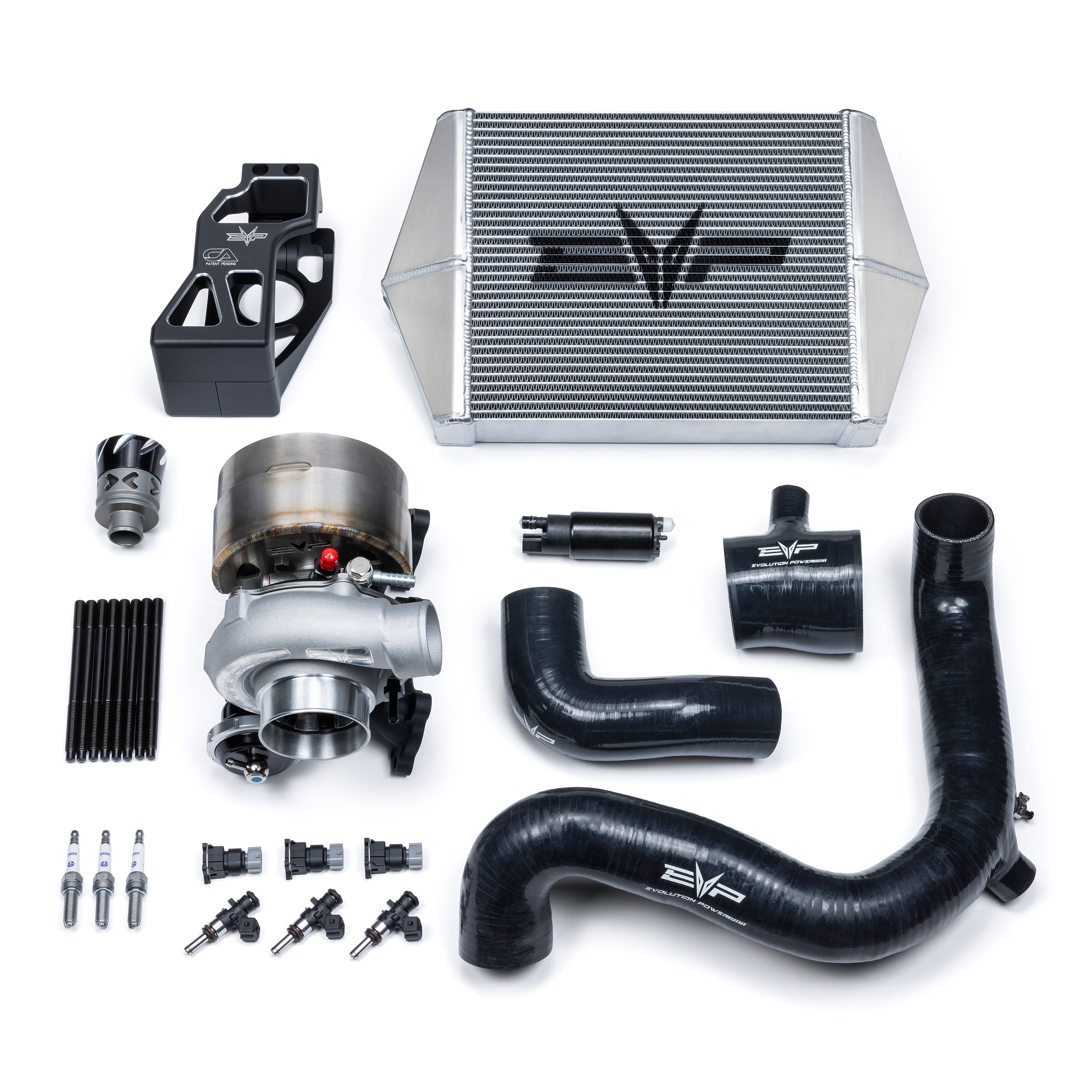

EVP PARAGON P43R-355 TURBO SYSTEM INCLUDES:

• EVP Paragon 43R Red Turbocharger Assembly for X3 MG1 ECU
• EVP Blow Off Valve 2.0 (BOV) Kit for X3
• EVP Paragon 43R Charge Tube Kit for 2020+ X3
• EVP Paragon High-Flow Intake Kit
• EVP Race Intercooler
• EVP Torrent-F Intake Plenum
• EVP Fuel Pump Assembly with 340lph Pump, 4.5 Bar Regulator
• EVP X3 Paragon Turbocharger Install Kit
• X3 Head Stud Kit, 9MM
• Replacement Spark Plugs
• EVP 1000cc Injectors (Set of 3)
• Fuel Injector Adapter Kit (Set of 3)

INSTRUCTIONS

2021-2023 X3 Turbo RR Paragon-43R 355 Turbo Upgrade System

Manufactured by Evolution Powersports. Official specs and resources: EvoPowersports.com.

Product Disclaimers | Installation Instructions | Terms and Conditions
