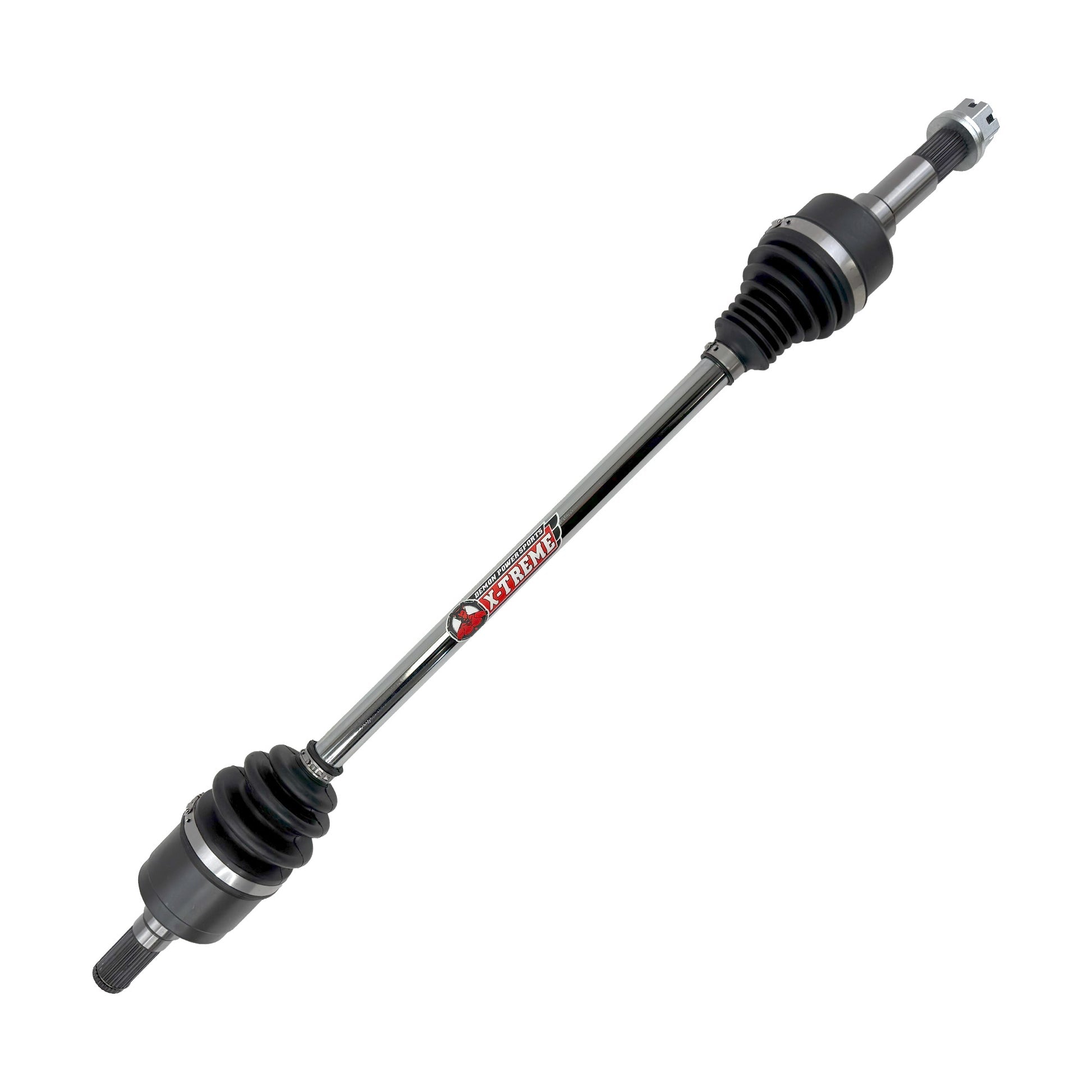

2016–2025 Yamaha YXZ 1000R Front Left, Front Right 6 Inch Xtreme Heavy Duty Long Travel Axle Race Spec 300M

Demon X-Treme Heavy Duty Long Travel Race Spec Axles combine our Race Spec axle technology with a purpose-built long-travel design for Yamaha YXZ 1000R equipped with 3.5 inch FIREBALL RACING,4 inch EXTREME,LSK YXZ Long Travel Kit. Engineered for extended-width suspension systems, increased suspension travel, high-horsepower builds, oversized tires, and competitive off-road use, these axles are built for demanding applications where strength and suspension performance are critical.

Each axle is specifically engineered to match the increased axle length, suspension movement, and operating angles required by 3.5 inch FIREBALL RACING,4 inch EXTREME,LSK YXZ Long Travel Kit. This purpose-built geometry helps your Yamaha YXZ 1000R maintain proper axle operation throughout the increased suspension travel of a compatible long-travel system.

At the heart of the Race Spec design is a high-strength 300M steel axle shaft. 300M is a high-performance alloy based on 4340 chromoly steel with additional alloying elements, including increased silicon and vanadium. This combination provides exceptional strength and toughness while allowing the axle shaft to flex and absorb severe shock loads encountered during aggressive riding and racing.

The 300M shaft is paired with our heavy-duty XHD CV joints and internal components engineered for extreme off-road use. Micro-polished internal CV surfaces help reduce friction and operating temperatures, while high-quality molybdenum grease provides smooth and consistent lubrication under demanding conditions.

Our heavy-duty CV cage and internal design are built to withstand aggressive suspension movement, hard impacts, oversized tires, increased horsepower, and the additional loads created by long-travel suspension systems.

Built for desert, sand, rocks, trails, short-course racing, and other extreme environments, Demon X-Treme Heavy Duty Long Travel Race Spec Axles give your Yamaha YXZ 1000R equipped with 3.5 inch FIREBALL RACING,4 inch EXTREME,LSK YXZ Long Travel Kit the strength, flexibility, and durability required to take full advantage of a high-performance long-travel suspension setup.

Engineered for serious riders and racers, Demon X-Treme Heavy Duty Long Travel Race Spec Axles deliver our Race Spec performance in a purpose-built solution for demanding long-travel applications.

•Redesigned and re-engineered center shaft to transmit maximum torque
• Center shaft made from robust aircraft-grade 300M material
• CV Joint and internal components made from 4340 chromoly steel
• Re-engineered cage design to enhance durability
• Up to 47° angles, large CV joint and shaft diameters
• Up to 40% stronger than 4340 material XHD axles
• All components undergo a proprietary dual heat treatment process to enhance strength
• Micro polished inner components with propriety grease to reduce the overall heat
• Backed with 2-Years Limited Warranty
• Available for Long Travel kits in +2, +3, +3.5 and +4 lengths
• Chrome plated to remove stress risers and provide an extra layer of protection to the center shaft

2016-2025 YXZ1000R Front Left, Front Right

2016-2021 YXZ1000R SE Front Left, Front Right

2017-2025 YXZ1000R SS Front Left, Front Right

2017-2021 YXZ1000R SS SE Front Left, Front Right

2020-2025 YXZ1000R SS XT-R Front Left, Front Right
