HCR TAL-05400 Honda Talon 1000R 2 SEAT Long Travel Suspension Kit

PART # TAL-05400

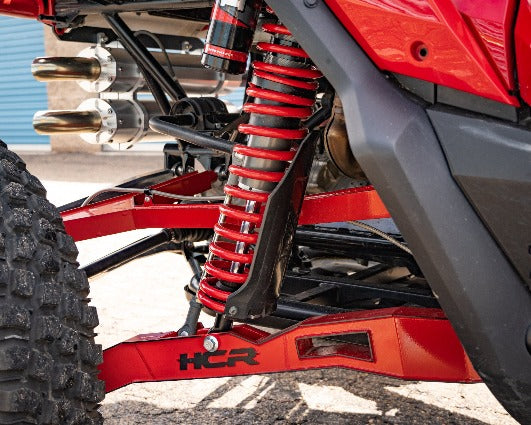

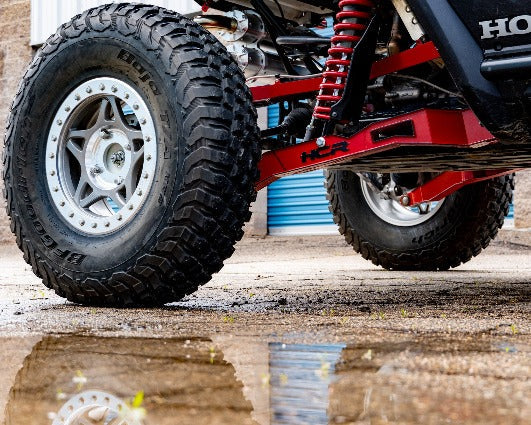

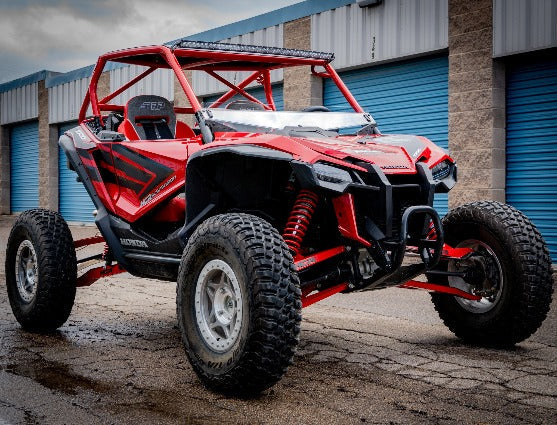

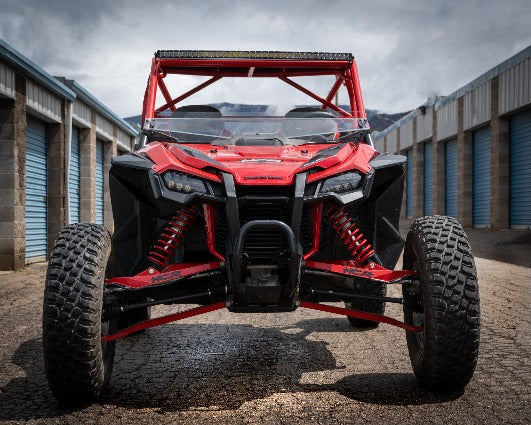

HCR Suspension’s Honda Talon Dual-Sport Long-Travel Suspension System

This system is designed to give you more stability and control in various applications from dunes ,desert and rock crawling . Giving you an edge over stock components.

• Added Strength and Appeal with the HCR Badge
• 72" Width At the Wheel - "Overall Width will depend on the Wheel and Tire Combo"
• Added 3.3" of Wheel Base - 96"
• Suspension Travel 17.7" Front 20" Rear + 1"Wheel Travel
• Front High Clearance Design
• Rear High Clearance Design 1-5/8" Added Clearance
• Adds 15 lbs overall , Roughly 3.75 lbs per corner
• Laser Cut construction for precise fit and finish
• CNC'd Chromoly mounting points for increased integrity
• HCR Custom Alloy. Boasts 30% more strength than Chromoly

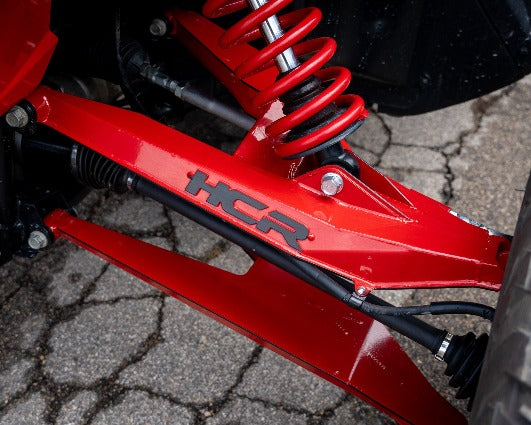

• High Clearance Boxed Front A-Arm Design
• Each piece is Tig Welded by hand for strength and aesthetics
• Re-use of OEM ball joints to maximize low speed steering ease & smooth travel with less maintenance
• High-Clearance Rear Trailing Arms provide an increase of 1.75” in ground clearance
• 100% Proudly Made in the U.S.A

Kit Includes :

• 4 - Front A-Arms
• 2 - Tie Rod Extensions
• 2 - Upper Rear A-Arms
• 2 - Rear Trailing Arms
• 4 - High Clearance radius rods - Anodized Black
• 4 - RCV Axle Bars Only - Reuse Factory CV's
• 2 - Rear Brake Lines
• Hardware Kit

** Reuses all Factory Ball Joints and Shocks

*2 Seat models only

Estimated Install Time 10 hrs
