LIT E-SERIES LED Curved Double Row - 5 Watt

When you need the most powerful LED light setup with great long distance power and fantastic flood for close obstacles, the LIT LED Curved double combo bar is the perfect choice. With two rows of high powered 5 watt LEDs, the double row LED bars will light the way on the darkest night. The LIT LED double row bars are available in 31.5", 41.5", and 51.5" sizes. Each bar uses a balanced combination of flood and spot reflectors to give you the best lighting pattern available. Rest assured that you have the most powerful and affordable curved lighting solution available with the LIT LED Curved double combo bar.

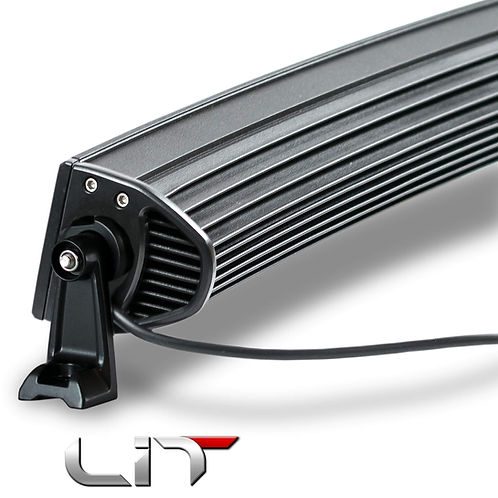

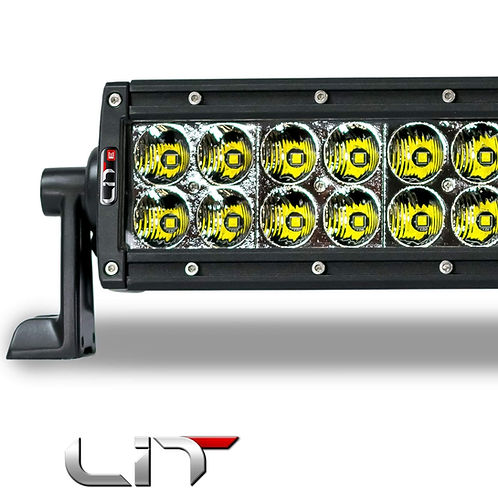

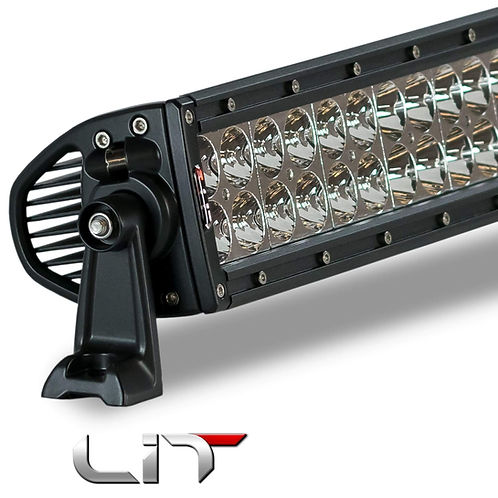

LIT LED Curved Double Row Light Bar

High-output curved double-row LED light bar featuring a hybrid spot/flood beam pattern, durable aluminum housing, and included mounting hardware.

Specifications by Size

32-Inch Specifications

Actual Length	31.5 in.
LED Quantity	60
Light Output	25,680 lumens
Amp Draw	24 amps
Watt Rating	300 watts

42-Inch Specifications

Actual Length	41.5 in.
LED Quantity	80
Light Output	34,240 lumens
Amp Draw	32 amps
Watt Rating	400 watts

52-Inch Specifications

Actual Length	51.5 in.
LED Quantity	100
Light Output	42,800 lumens
Amp Draw	40 amps
Watt Rating	500 watts

Common Specifications

• Beam Pattern: Hybrid spot/flood
• Bulb Color: White
• Voltage: 9–36V
• Light Bar Type: Curved
• Housing Material: Aluminum
• Housing Finish: Black
• Lens: Clear acrylic
• Mounting Hardware: Included
• Quantity: One light bar
• Brand: LIT
