RLB Motorsports PRO8 Switch Panel

PRO8 Switch Panel

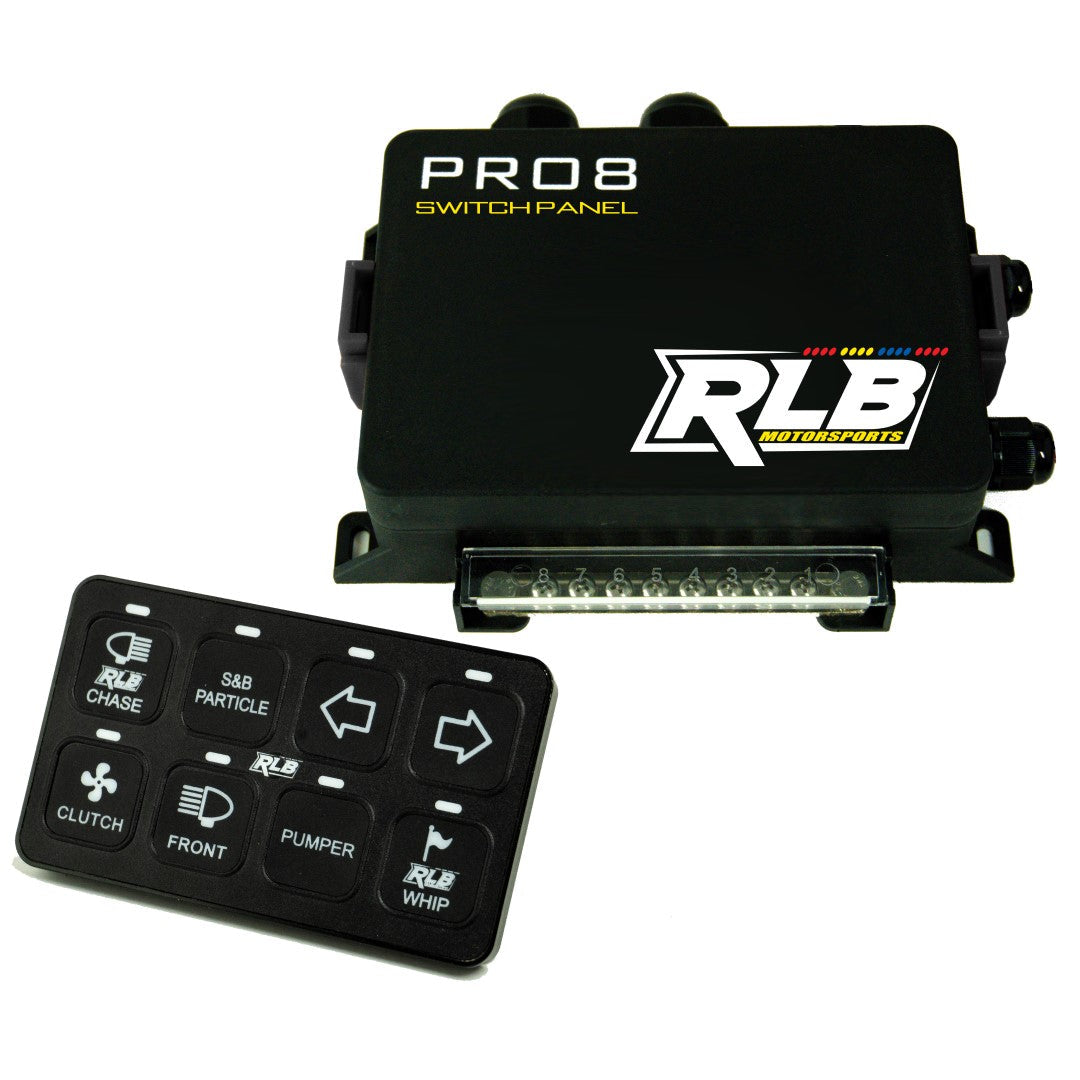

PRO8 Switch Panel RLB Motorsports is an 8 gang (button) electronic programmable switch panel. Allows for easy installation of any 12V accessories to any off-road vehicle, UTV, Jeep, car, truck, RV, or boat. Waterproof, 100% serviceable, and with four easy mounting options. All-in-one Plug N Play kit.

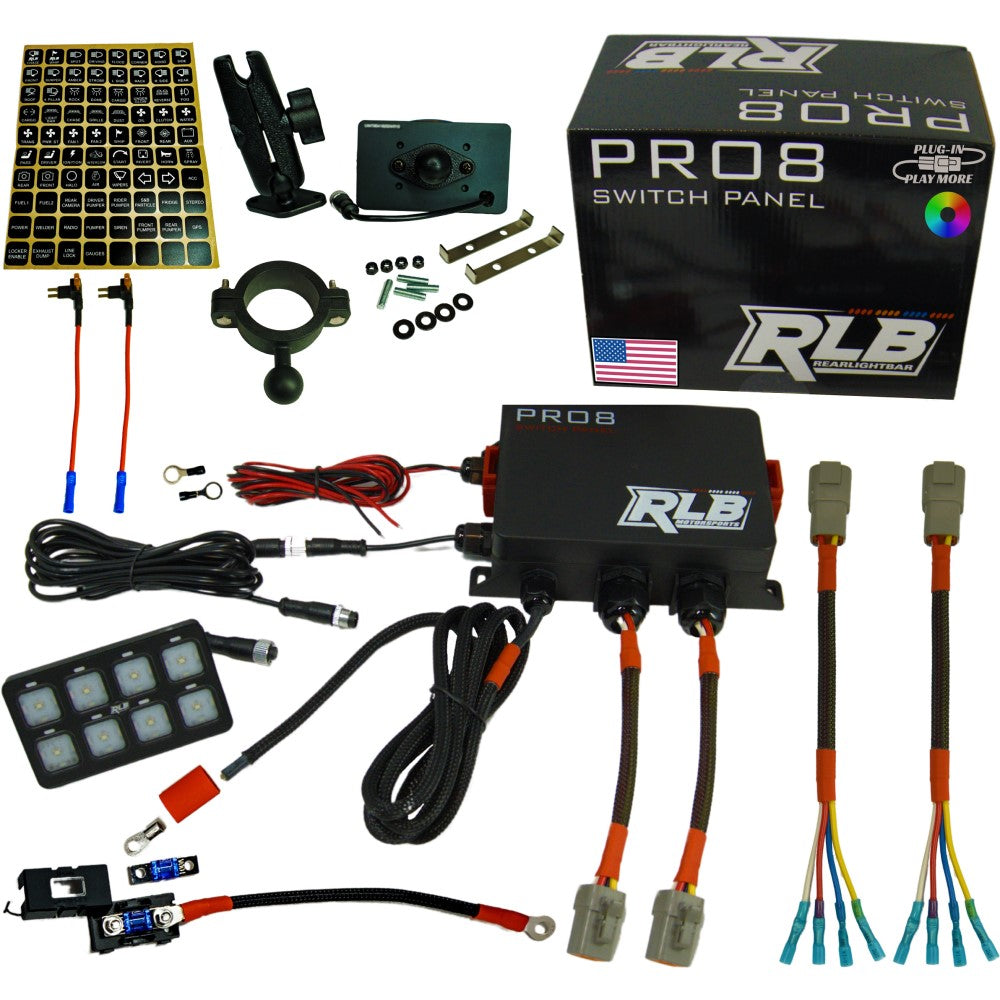

All Systems Include:

• Sticker Legend
• Eight User-selectable Programmable Switches
• Eight 30a Circuits
• Waterproof Power Module
• 100% Serviceable, the Universal Relays and Fuses Are Replaceable, Not Solid State
• 4 Backlight Color Options; White, Blue, Green, and Red
• Two Installation Options: Direct to Battery or Ignition Activated
• 4 Mounting Options: Flush Mount, Panel Mount, Ram Tube Mount, Ram Surface Mount
• Low Voltage Cut-off Protection
• Overvoltage Protection
• Completely Serviceable Fuse/relay Power Module

Switches Can Be Programmed for:

• On/off or Momentary
• Blinker
• Flash or Strobe, With User-selectable Strobe Patterns and One-touch Activation
• Memory Function
• Master Memory on/off Function
• Waterproof Polycarbonate Overlay Faceplate

Power Module:

• Size: Length 8.27″, Width 6.3″, Height 2.24″
• Temp. Rating: Automotive -40c – 125c
• Waterproof and Dust Rating: Ip66
• Amp Rating: 100a Max
• Each Switch Output: 30a Max
• Low Voltage Cutoff
• Ignition Control

Switch Panel:

• Size: Length 4.57″, Width 2.72″, Height 0.47″
• Housing: Anodized Aluminum
• Switch Membrane and Sticker Legend: Polycarbonate
• Temp. Rating: -30c – 85c
• Waterproof and Dust Rating: 1p66
• Backlight Colors: White, Blue, Green, Red
• Switch Functions: on/off, Flash, Strobe, Momentary, Blinker
• Mounting Options: Flush Mount, Panel Mount, Ram Tube Mount, Ram Surface Mount
