The Scissor Jack HD

Get heavy-duty lifting capability without carrying a full-size floor jack.

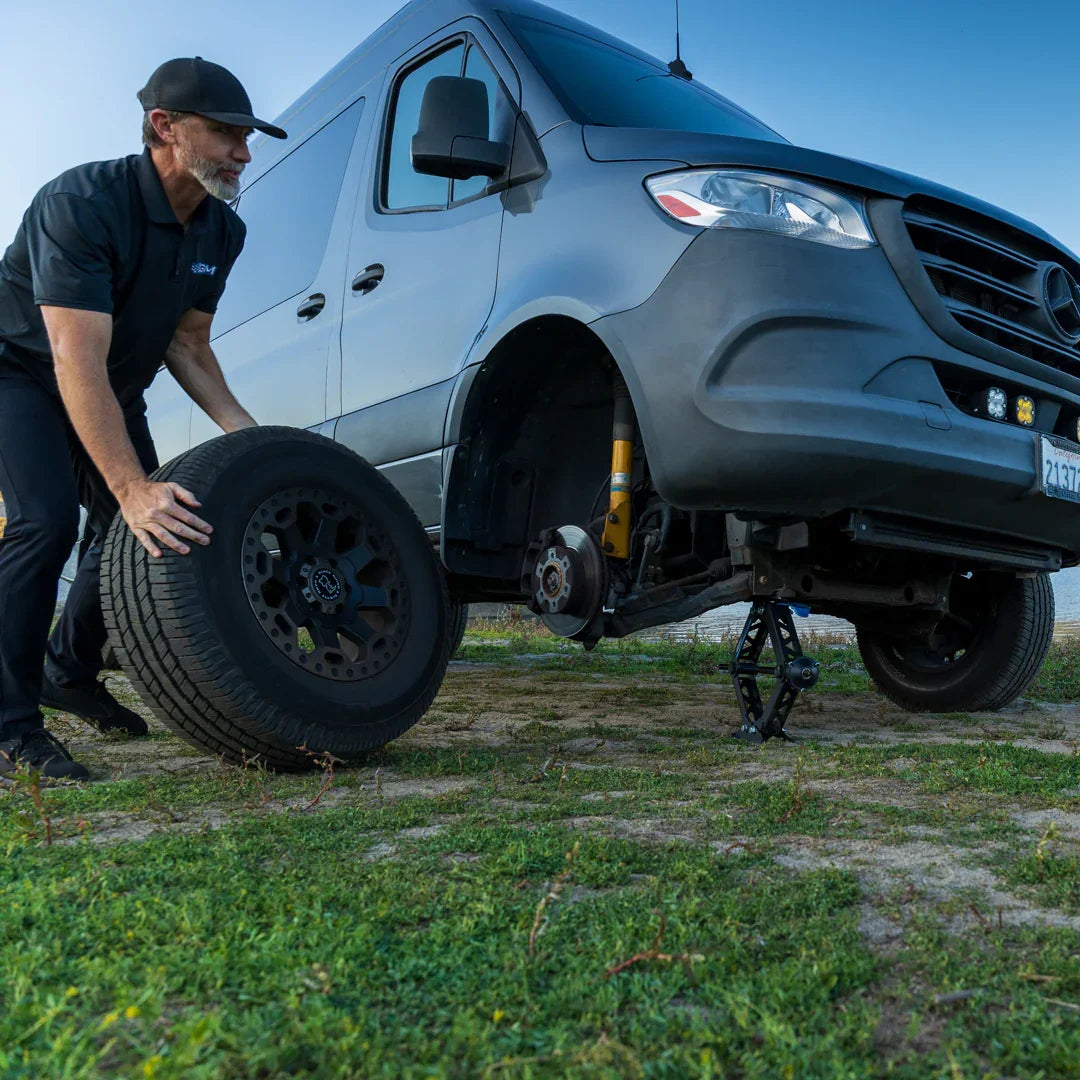

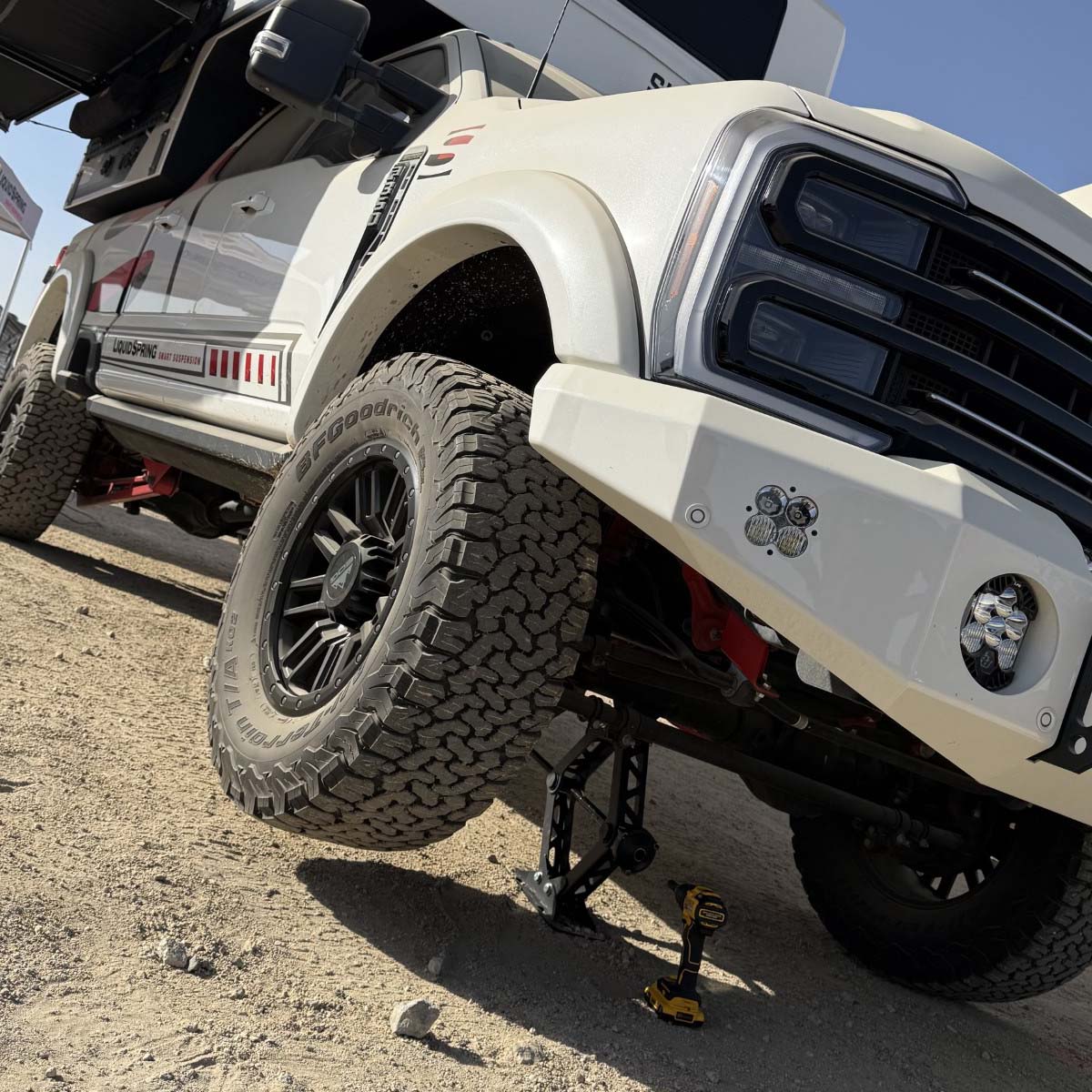

The AGM Scissor Jack HD is purpose-built for full-size trucks, SUVs, overland rigs, camper vans, trailers, and other larger vehicles that need more than a basic factory emergency jack.

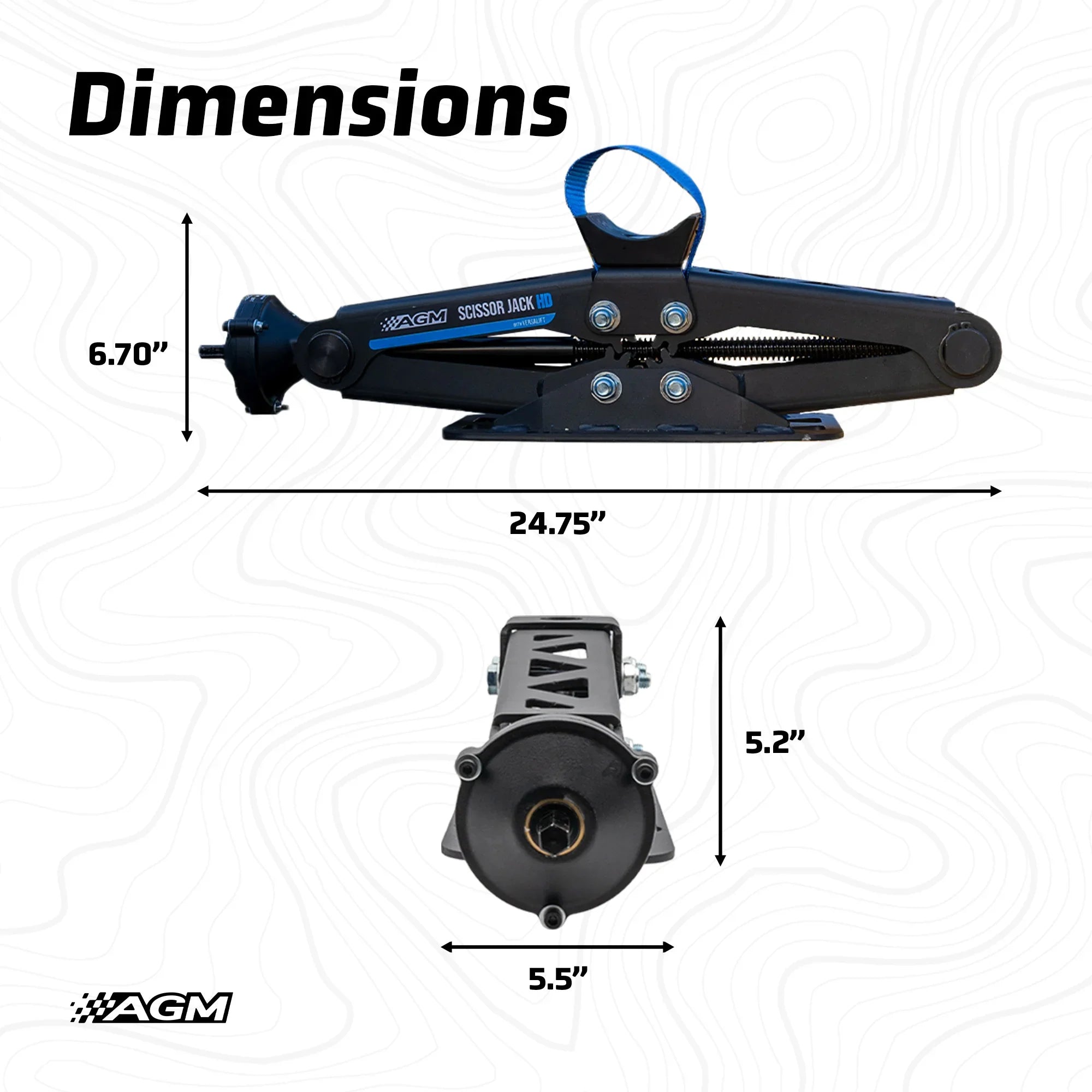

With a 7,000 lb. rated capacity, 13.8 inches of lift travel, and a maximum height of 20.5 inches, the HD gives you serious lifting capability in a compact package that collapses to just 6.7 inches for easier storage in your vehicle, trailer, or garage.

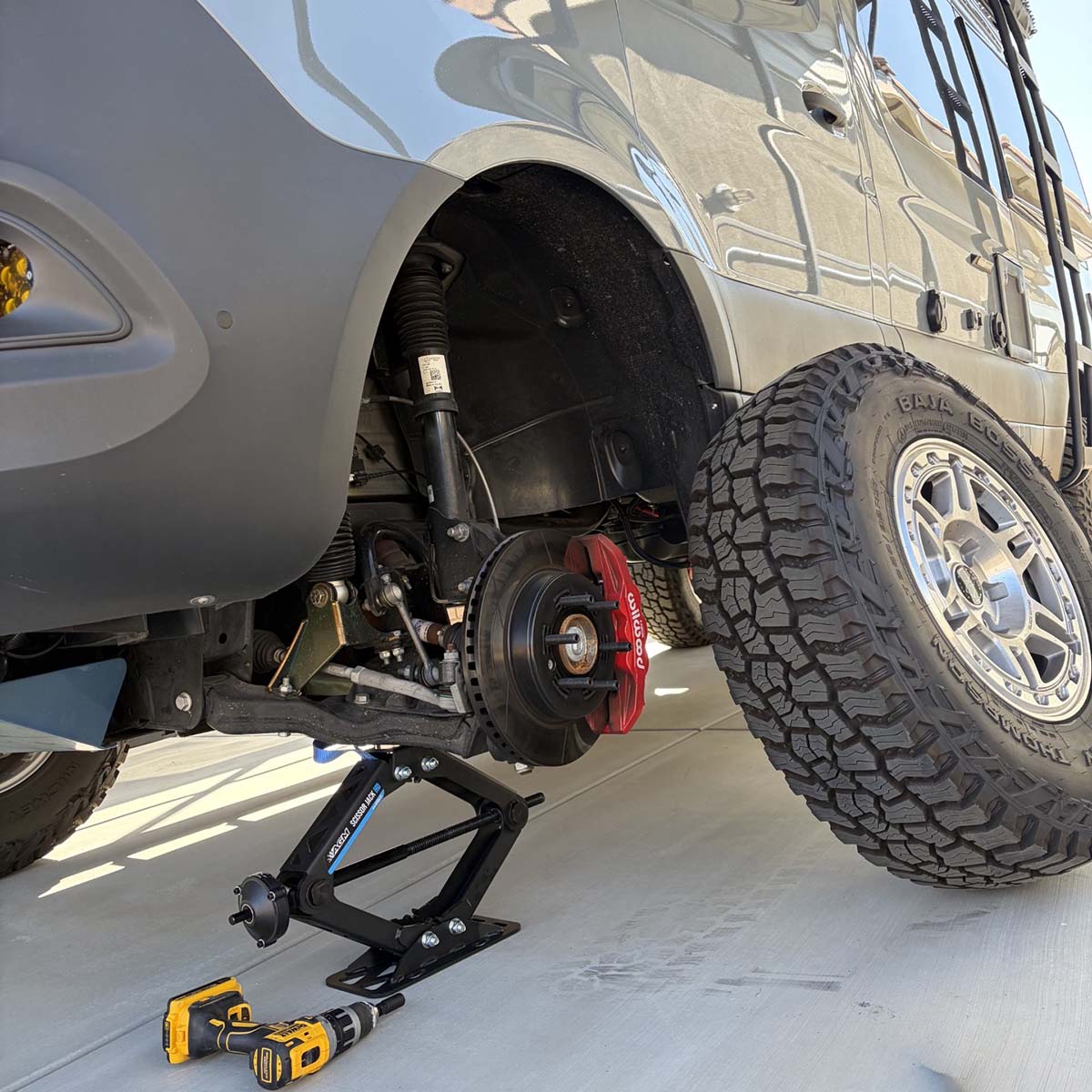

AGM’s EZ-Torque reduction gearbox lets you operate the jack with a standard 18V drill, reducing the effort required to lift heavier vehicles while maintaining controlled operation. A long-reach hand crank is also included when powered operation is not available.

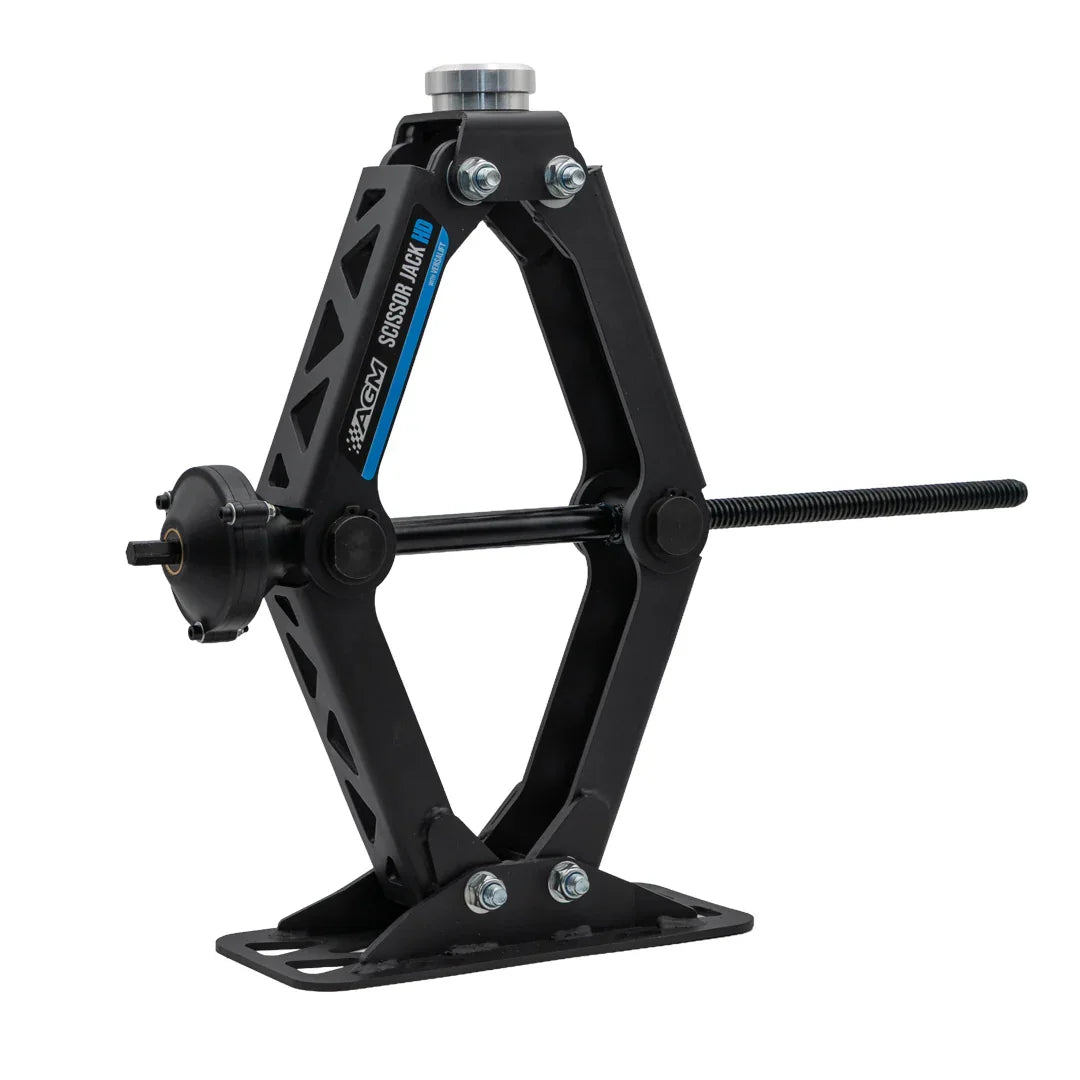

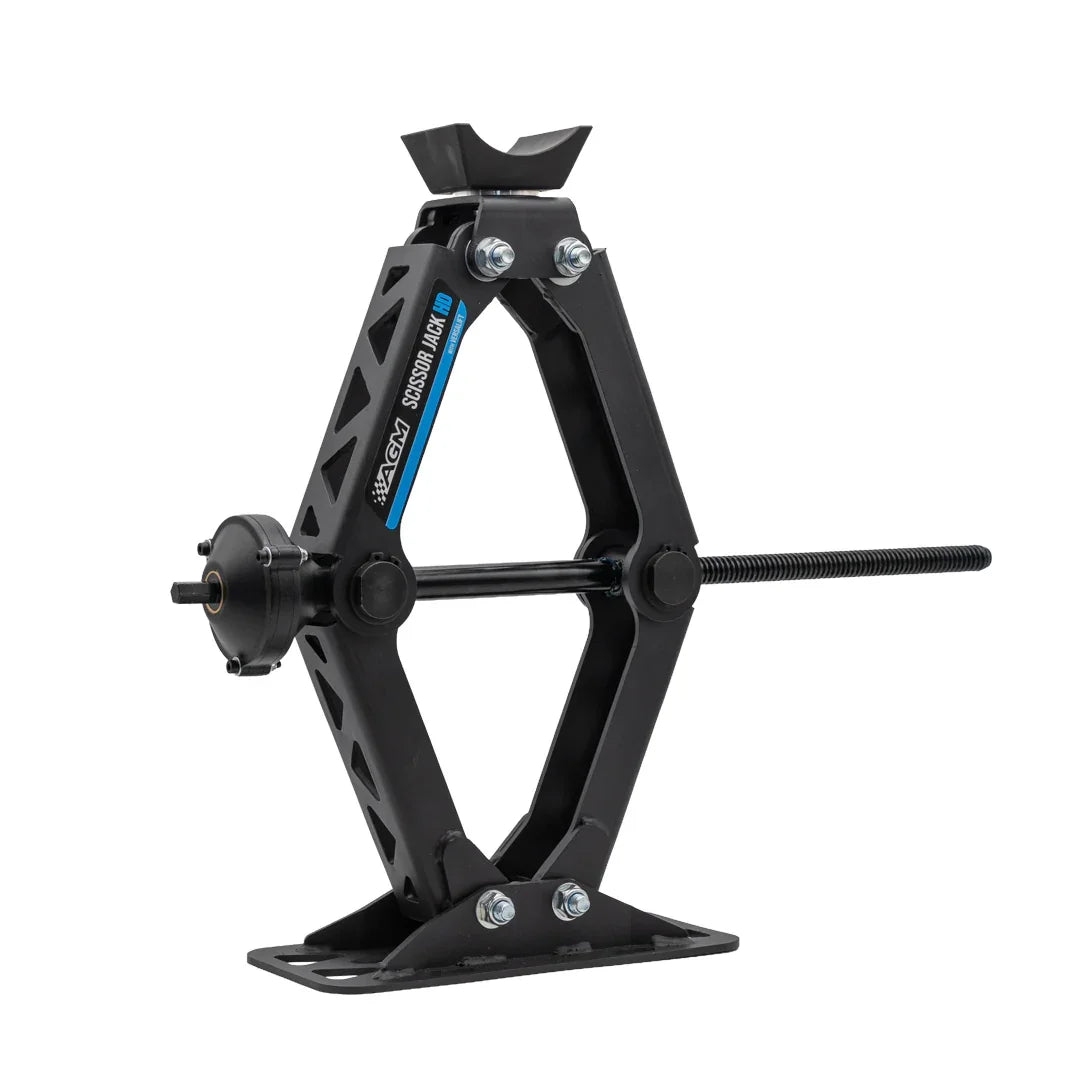

Two dedicated lifting heads give you options for different vehicle lift points. Use the Flat Puck Head on suitable flat lifting surfaces or the Axle Saddle Head to better engage compatible axle-style lift points.

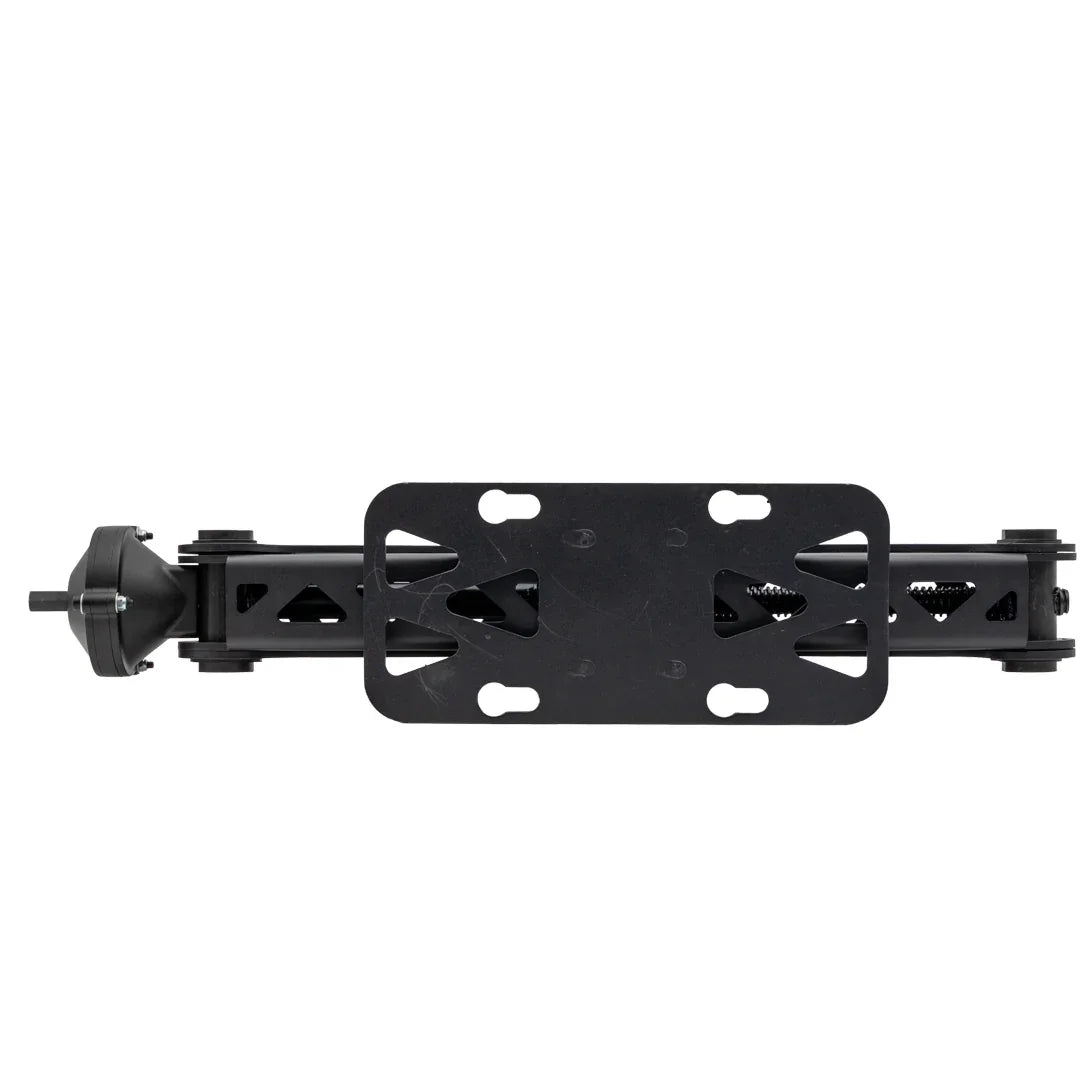

A wide 12 x 6 in. rectangular steel base provides a larger footprint beneath the jack.

No hydraulics to leak. No oversized floor jack to haul. Just a compact, heavy-duty lifting system built for the vehicles and loads that demand more from a jack.

Best For

• Full-size trucks
• SUVs
• Overland rigs
• Camper vans
• Trailers
• Larger vehicles within the jack’s rated capacity
• Roadside, trail-side, garage, and travel repairs

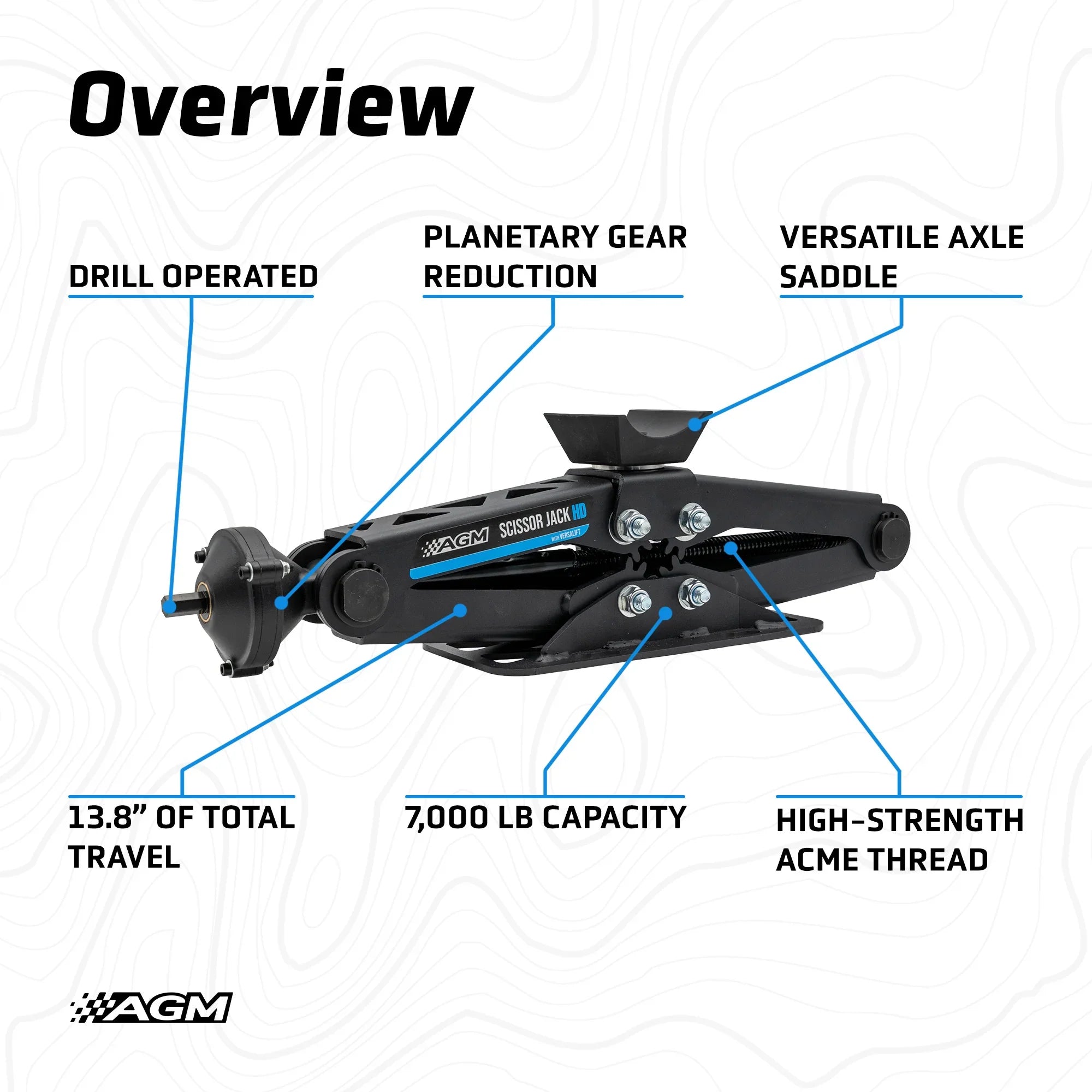

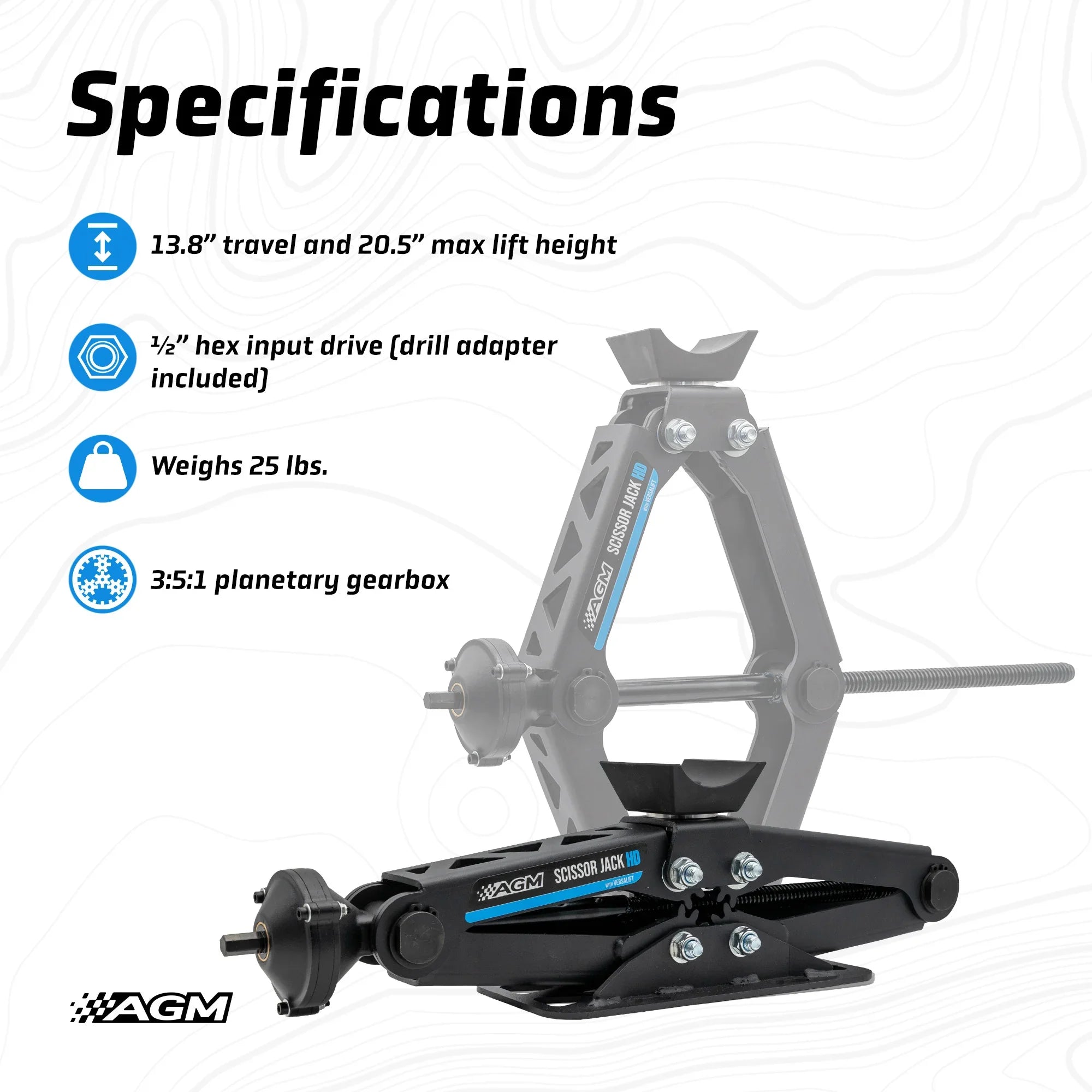

Key Specs

• Capacity: 7,000 lb.
• Travel: 13.8 in.
• Maximum Height: 20.5 in.
• Collapsed Height: 6.7 in.
• Weight: 25 lb.
• Lift Speed: 1.59 in./sec.
• Operation: Compatible 18V drill or long-reach hand crank
• Input Drive: 1/2 in. hex
• Recommended Drill Torque: 1,400 in.-lb.
• Base: 12 x 6 in. rectangular steel base
• Lift Heads: Flat Puck Head and Axle Saddle Head
• Drive System: EZ-Torque reduction gearbox

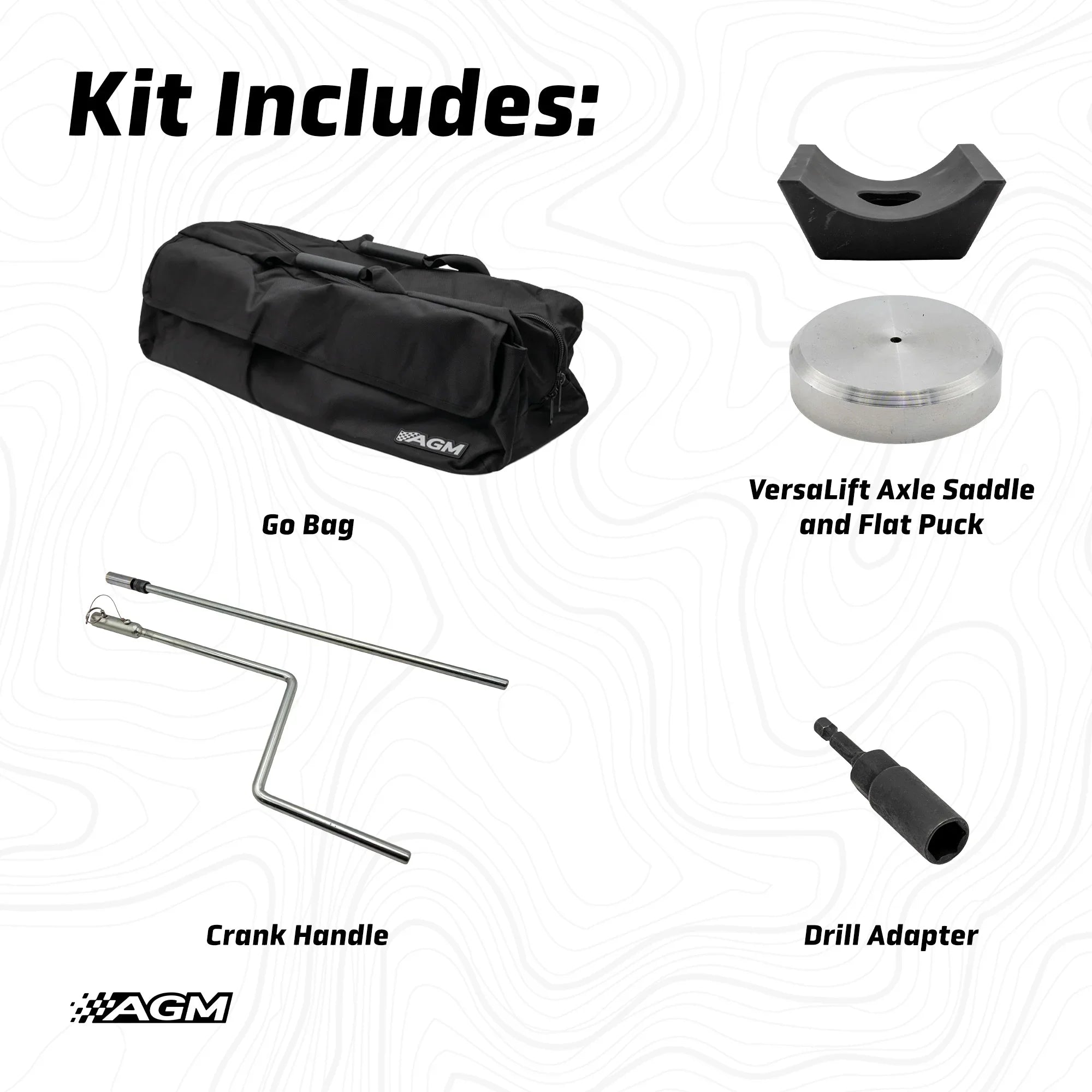

What’s Included

• AGM Scissor Jack HD
• EZ-Torque reduction gearbox
• Flat Puck Head
• Axle Saddle Head
• Drill hex adapter
• Long-reach hand crank
• AGM Go-Bag

Important Use Note

The Scissor Jack HD is designed for operation with a compatible drill or the included hand crank.

Do not operate the Scissor Jack HD with an impact gun or impact wrench.

Always use a structurally suitable lift point and never exceed the jack’s 7,000 lb. rated capacity.
